Lenovo ThinkSystem SR650 V3 7D75 - Two 8 X Anybay Backplanes (Gen 4)

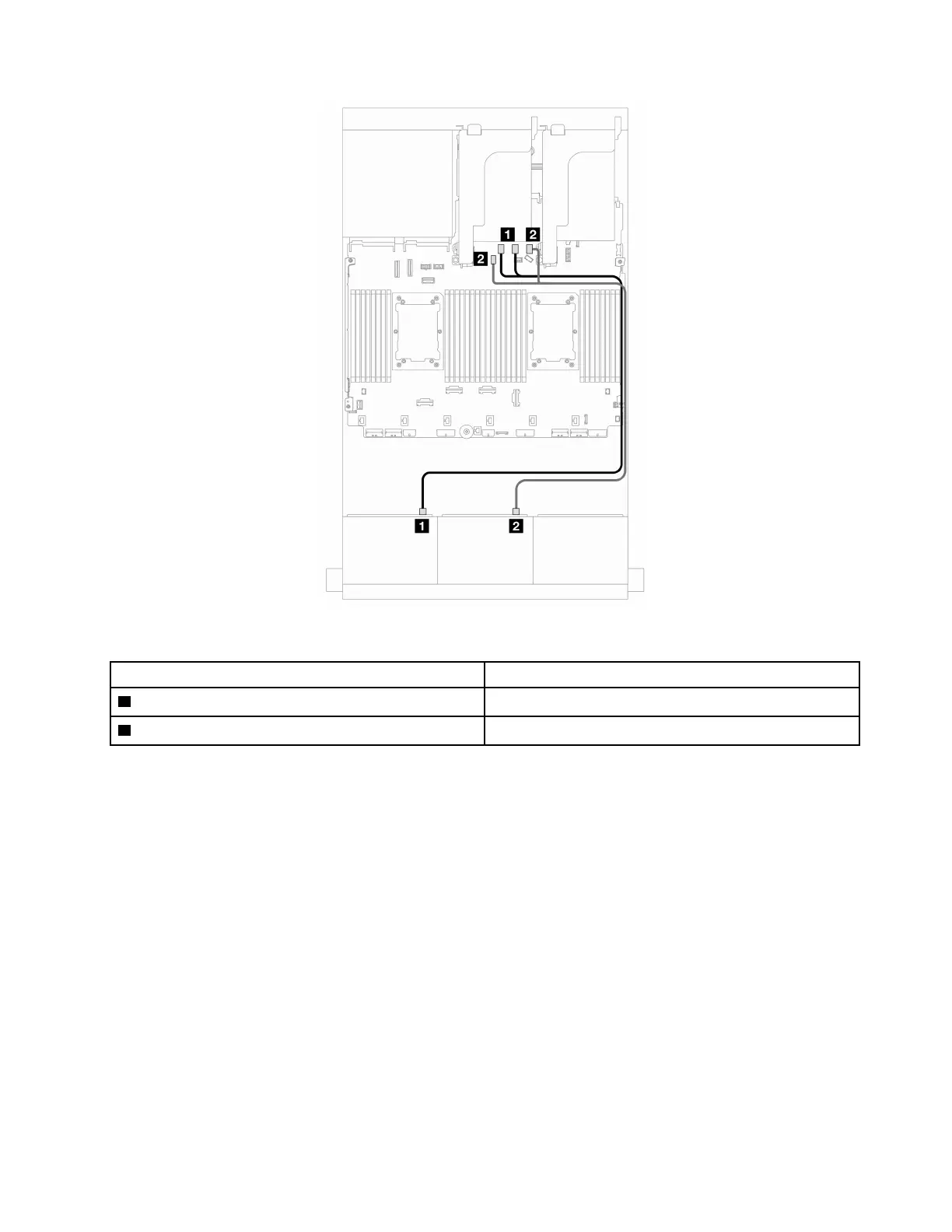

Figure 294. SAS/SATA cable routing to onboard connectors
From To
1 Backplane 1: SAS Onboard: SATA 0, SATA 1
2 Backplane 2: SAS Onboard: SATA 2, M.2 signal connector
Two 8 x AnyBay backplanes (Gen 4)
This section provides cable routing information for the server model with two 8 x 2.5-inch AnyBay front drive
backplanes (Gen 4).
To connect power cables for the front backplane(s), refer to
“Backplanes: server models with 2.5-inch front
drive bays” on page 297
.
To connect signal cables for the front backplane(s), refer to the following cable routing scenarios depending
on your server configuration.
• “Onboard connectors + 16i RAID/HBA adapter” on page 312
• “Trimode 8i RAID adapter” on page 313
• “Trimode 16i RAID adapter” on page 314
16 x AnyBay
This topic provides cable routing information for the 16 x AnyBay (Gen 4) configuration.
• “Onboard connectors + 16i RAID/HBA adapter” on page 312
