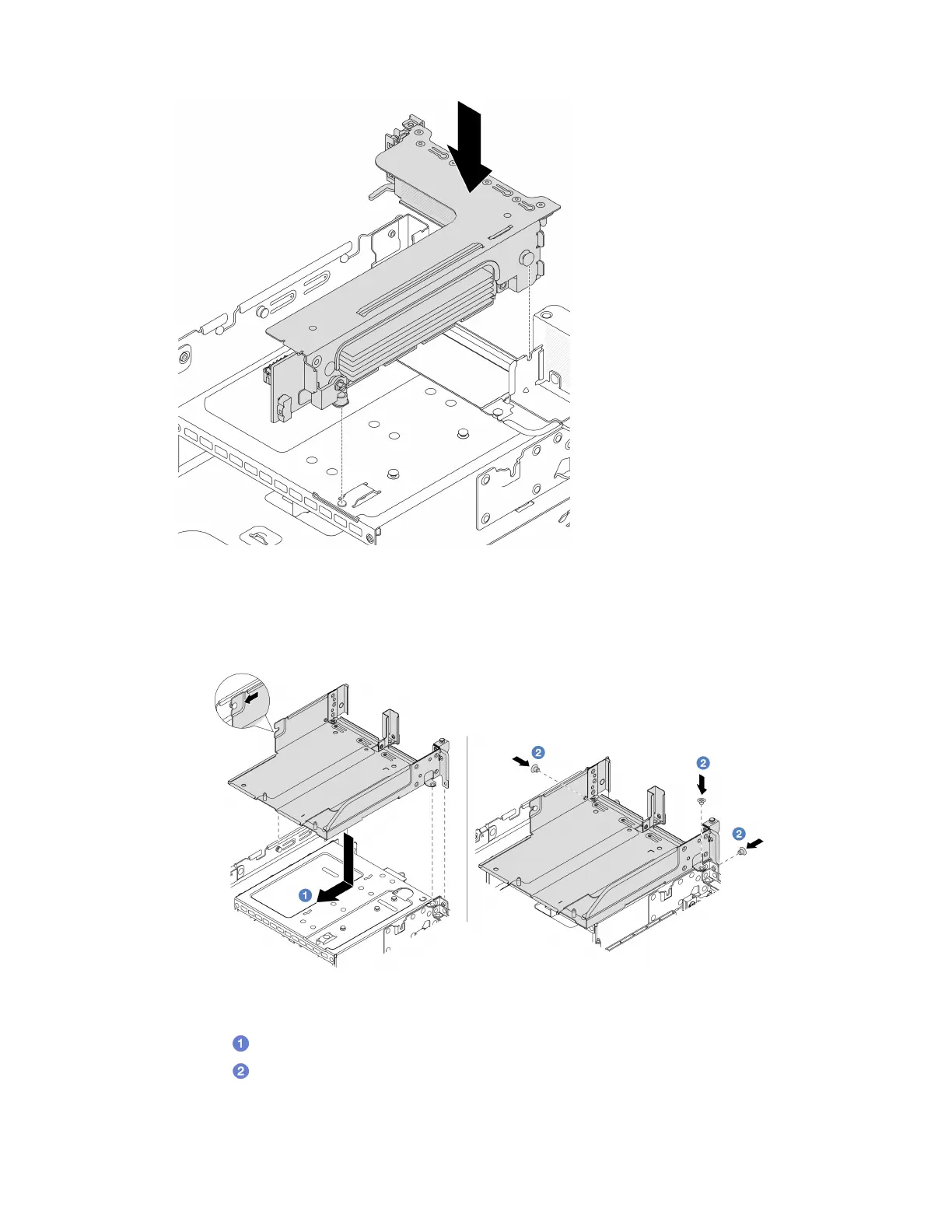

Figure 132. Riser 3 assembly installation
• 4LP Riser 3/4 assembly
1. Install the riser cage tray.
Figure 133. Riser cage tray installation
a. Align the riser cage tray with the pin and screw holes on the chassis.
b.
Install the screws to fix the riser cage tray to the chassis.
2. Install riser 3 assembly and riser 4 assembly into the riser cage.
168
ThinkSystem SR650 V3 User Guide
