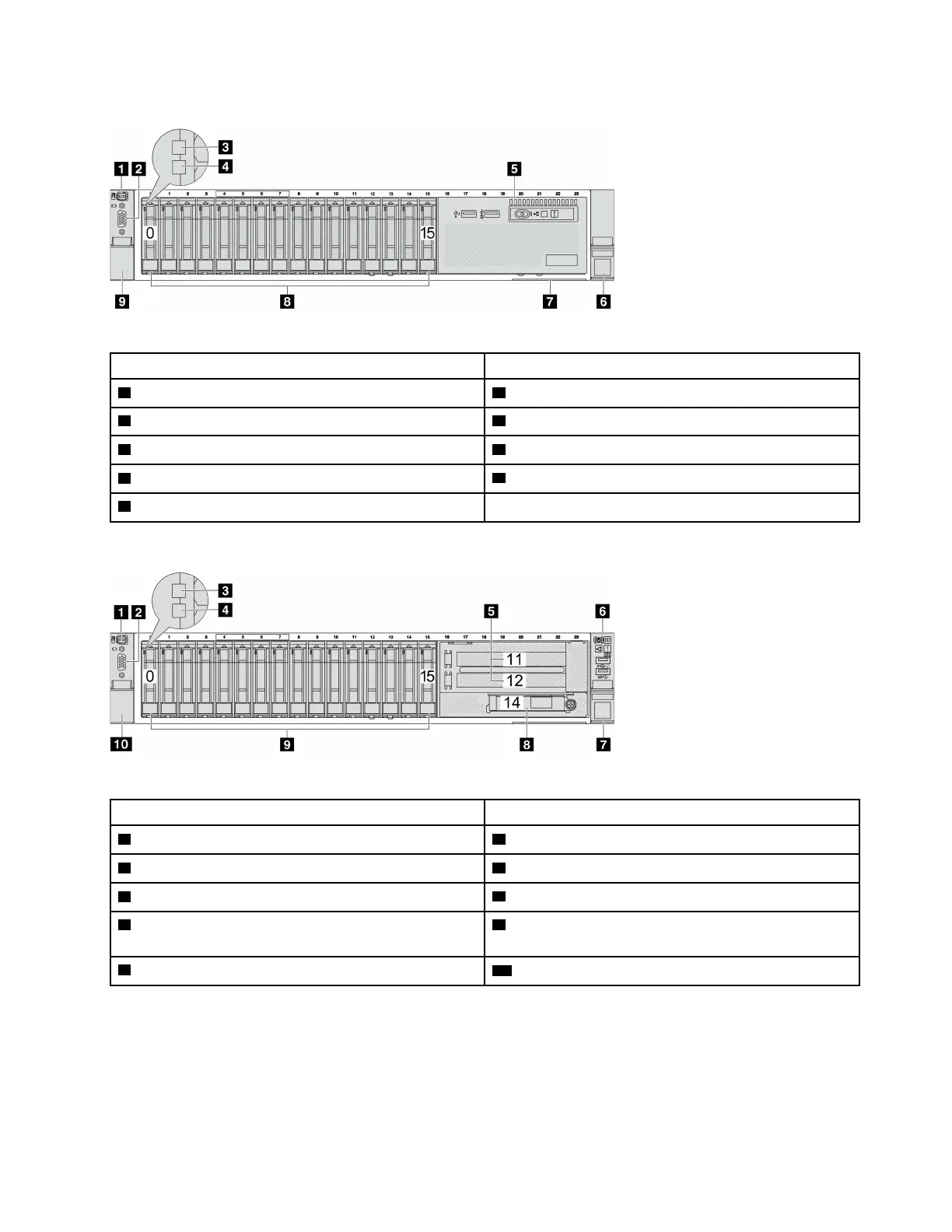

Front view with sixteen 2.5-inch front drive bays (model 2)
Table 5. Components on the front of the server
Callout Callout
1 “External diagnostics connector (optional)” on page 20 2 “VGA connector (optional)” on page 21
3 “Drive activity LED” on page 20 4 “Drive status LED” on page 20
5 “Front I/O module (on media bay)” on page 21 6 “Rack latch (right)” on page 21
7 “Pull-out information tab” on page 21
8 “Drive bays” on page 20
9 “Rack latch (left)” on page 21
Front view with sixteen 2.5-inch front drive bays (model 3)
Table 6. Components on the front of server models
Callout Callout
1 “External diagnostics connector (optional)” on page 20 2 “VGA connector (optional)” on page 21
3 “Drive activity LED” on page 20 4 “Drive status LED” on page 20
5 “PCIe slots (x2)” on page 21 6 “Front I/O module (on rack latch)” on page 21
7 “Rack latch (right)” on page 21 8 “Ethernet connectors on OCP module (optional)” on
page 21
9 “Drive bays” on page 20
10 “Rack latch (left)” on page 21
Chapter 2. Server components 17
