Full menu list
Following is the list of options available on the diagnostics panel or handset. Switch between an option and
the subordinate information entries with the select button, and switch among options or information entries
with the scroll buttons.
Depending on the model, the options and entries on the LCD display might be different.

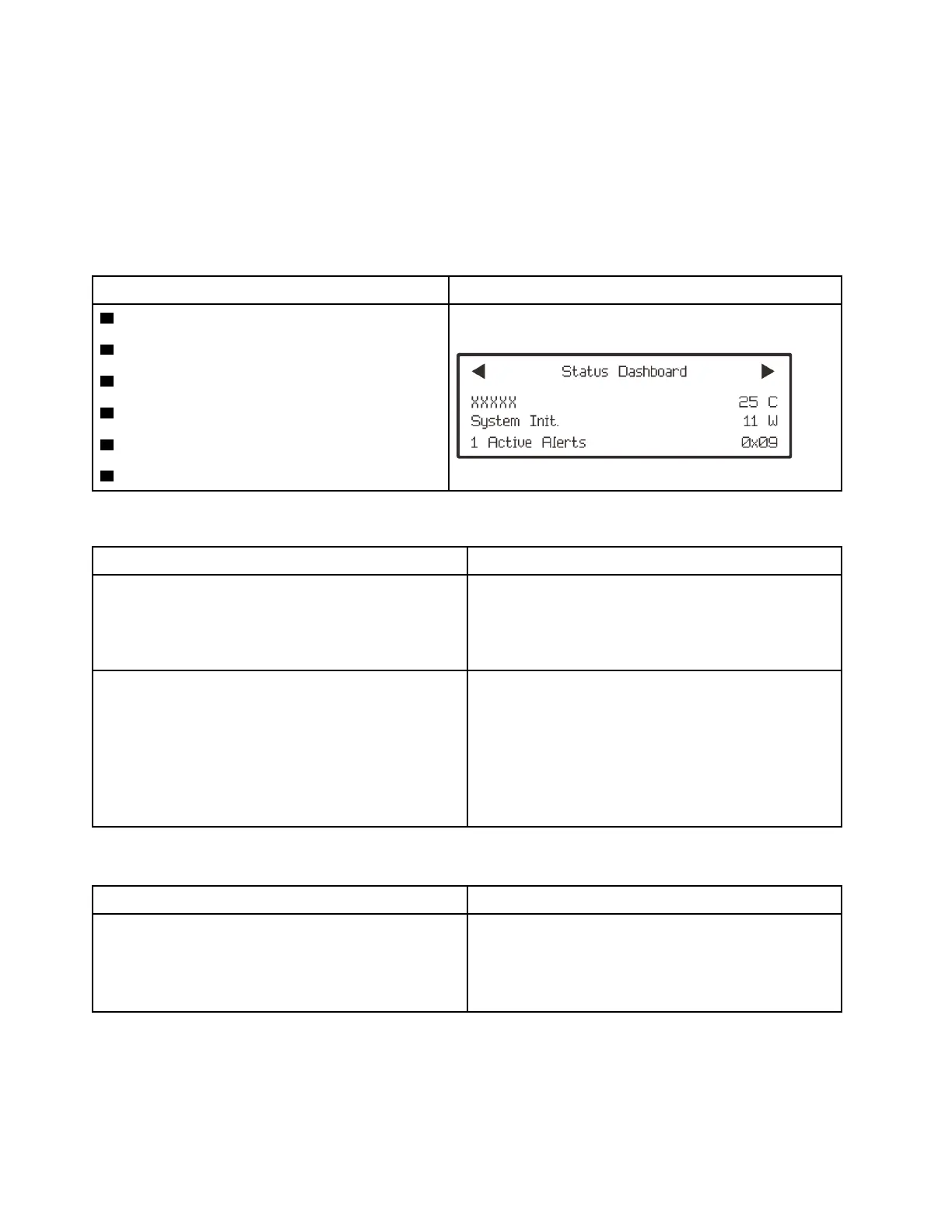

Home Menu (System Status Dashboard)
Home Menu Example
1 System name
2 System status
3 Active alert quantity
4 Temperature
5 Power consumption
6 Checkpoint code
Active Alerts
Sub Menu
Example
Home screen:
Active error quantity
Note: The “Active Alerts” menu displays only the quantity
of active errors. If no errors occur, the “Active Alerts”
menu will not be available during navigation.
1 Active Alerts
Details screen:
• Error message ID (Type: Error/Warning/Information)
• Occurrence time
• Possible sources of the error
Active Alerts: 1
Press ▼ to view alert details
FQXSPPU009N(Error)
04/07/2020 02:37:39 PM
CPU 1 Status:
Configuration Error
System VPD Information
Sub Menu
Example
• Machine type and serial number
• Universal Unique ID (UUID)
Machine Type: xxxx
Serial Num: xxxxxx
Universal Unique ID:
xxxxxxxxxxxxxxxxxxxxxxxxxxxx
466 ThinkSystem SR650 V3 User Guide
