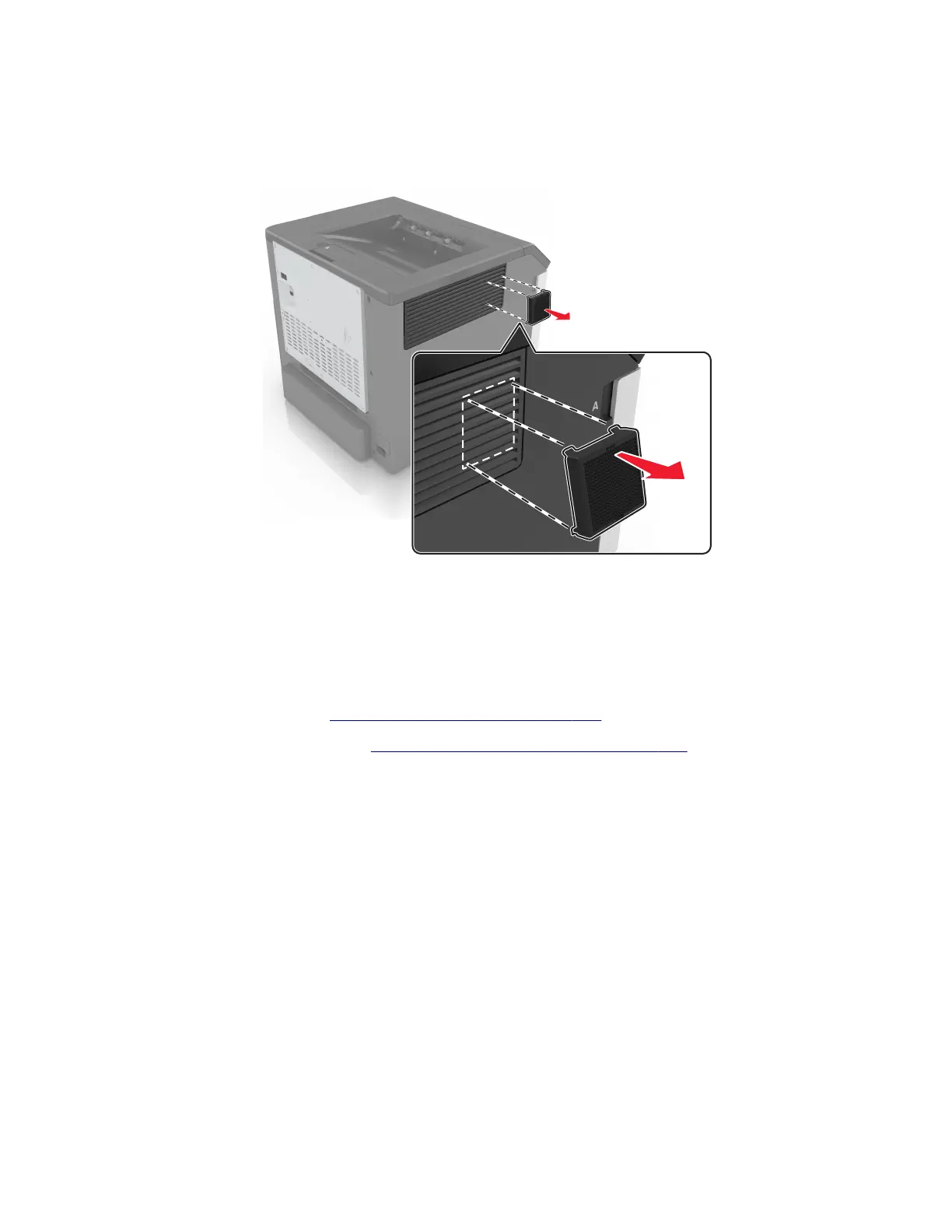

External air filter removal
1 Firmly hold the air
filter.
2 Pull the air filter to remove.
Control panel removals
Upper control panel removal
1 Remove the badge cover. See “Badge cover removal” on page 283.
2 Remove the number pad cover. See “Number pad cover removal” on page 284.
5028
Repair information
280
