Connector Connects to Pin no. Signal
AC1 AC line in 1 Phase
2Neutral

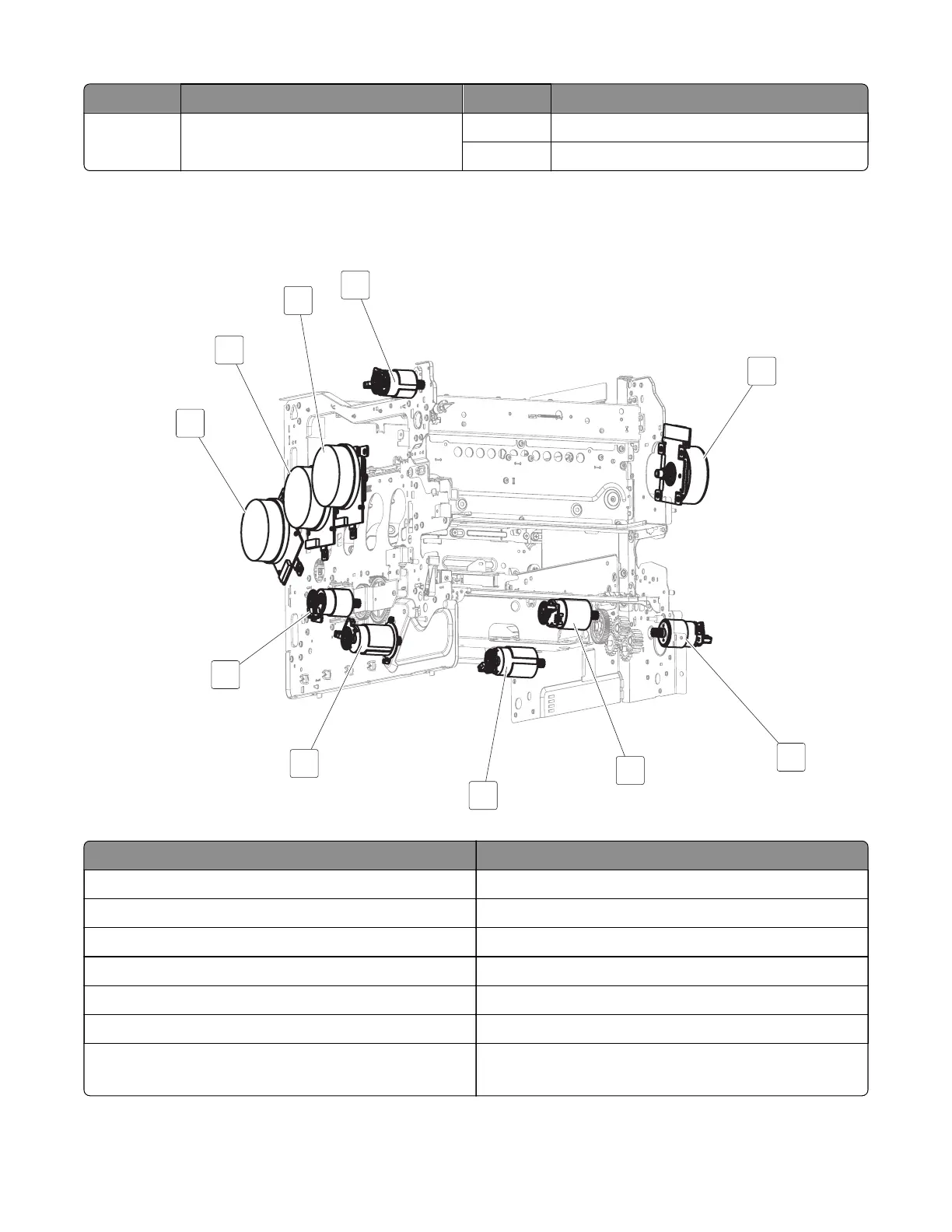

Motor locations
6
10
7
8
9
5
4
3
2
1
Part Description
1 Motor (fuser)
2 Motor (duplex/MPF)
3 Motor (isolation)
4 Motor (pick/elevator)
5 Motor (deskew)
6 Motor (BOR)
7 Motor (K developer)
Motor (ITM)
5028
Component locations
404
