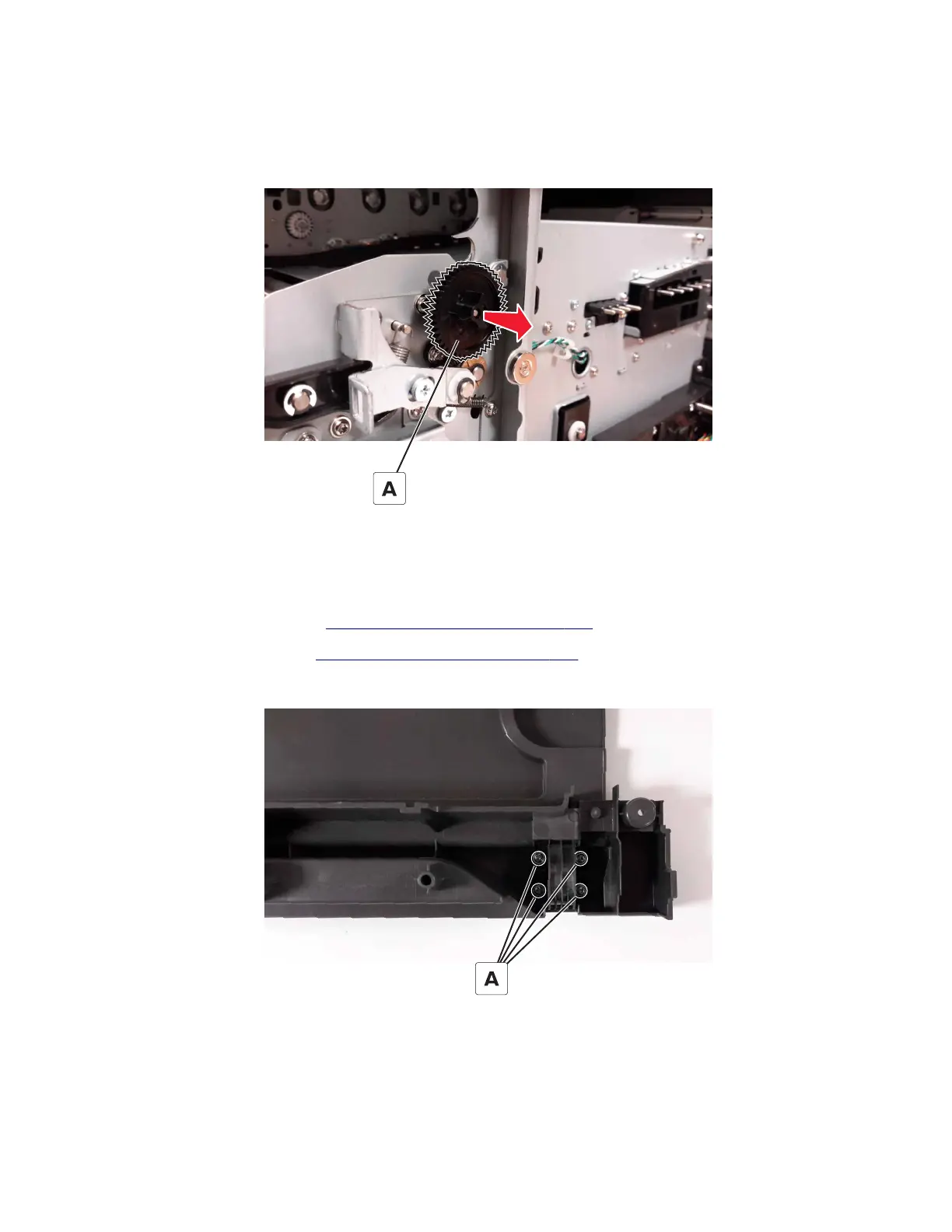

W
aste toner bottle idler gear removal
1
R
emove the waste toner bottle.
2
Re
m
o
v
e
t
h
e
g
e
a
r
.
Imaging unit cover removal
1
R
emove the waste toner bottle.
2
R
emove the motor cover
. See
“Motor cover removal” on page
273
.
3
R
emove the
right cover
. See
“Right cover removal” on page
272
.
4
R
emove the four screws (A).
5028
R
epair inform
ation
324
323
325
