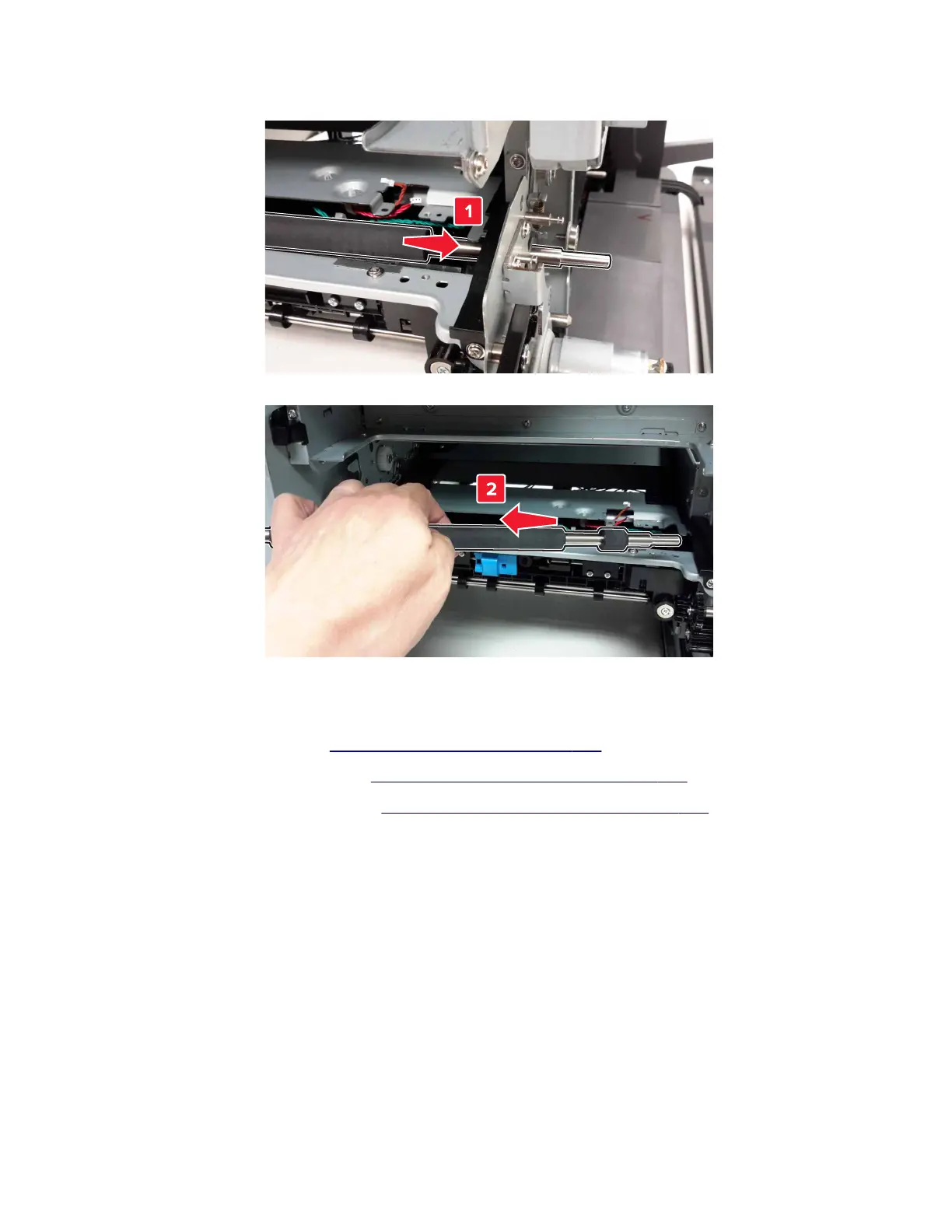

20 Slide the rear deskew roller to the right to remove.
Diverter removal
1 Remove the badge cover. See “Badge cover removal” on page 283.
2 Remove the number pad cover. See “Number pad cover removal” on page 284.
3 Remove the upper control panel. See “Upper control panel removal” on page 280.
5028
Repair information
350
