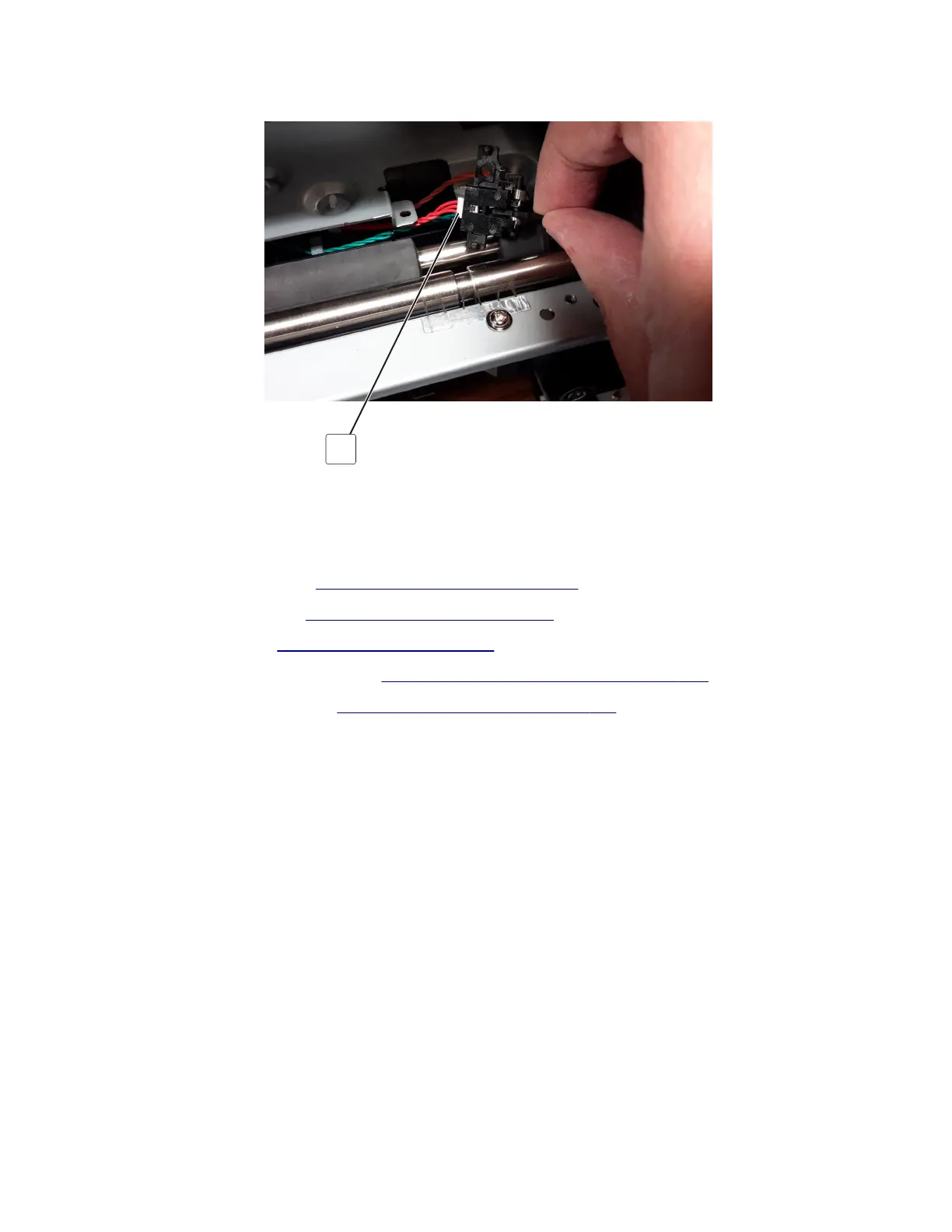

5 Disconnect the sensor cable (B), and then remove the sensor.
B
Deskew rollers removal
1 Open the front door.
2 Remove the right cover. See “Right cover removal” on page 272.
3 Remove the left cover. See “Left cover removal” on page 271.
4 Remove the LVPS. See “LVPS removal” on page 305.
5 Remove the sensor (media type). See “Sensor (media type) removal” on page 340.
6 Remove the sensor (input). See “Sensor (input) removal” on page 341.
5028
Repair information
342
