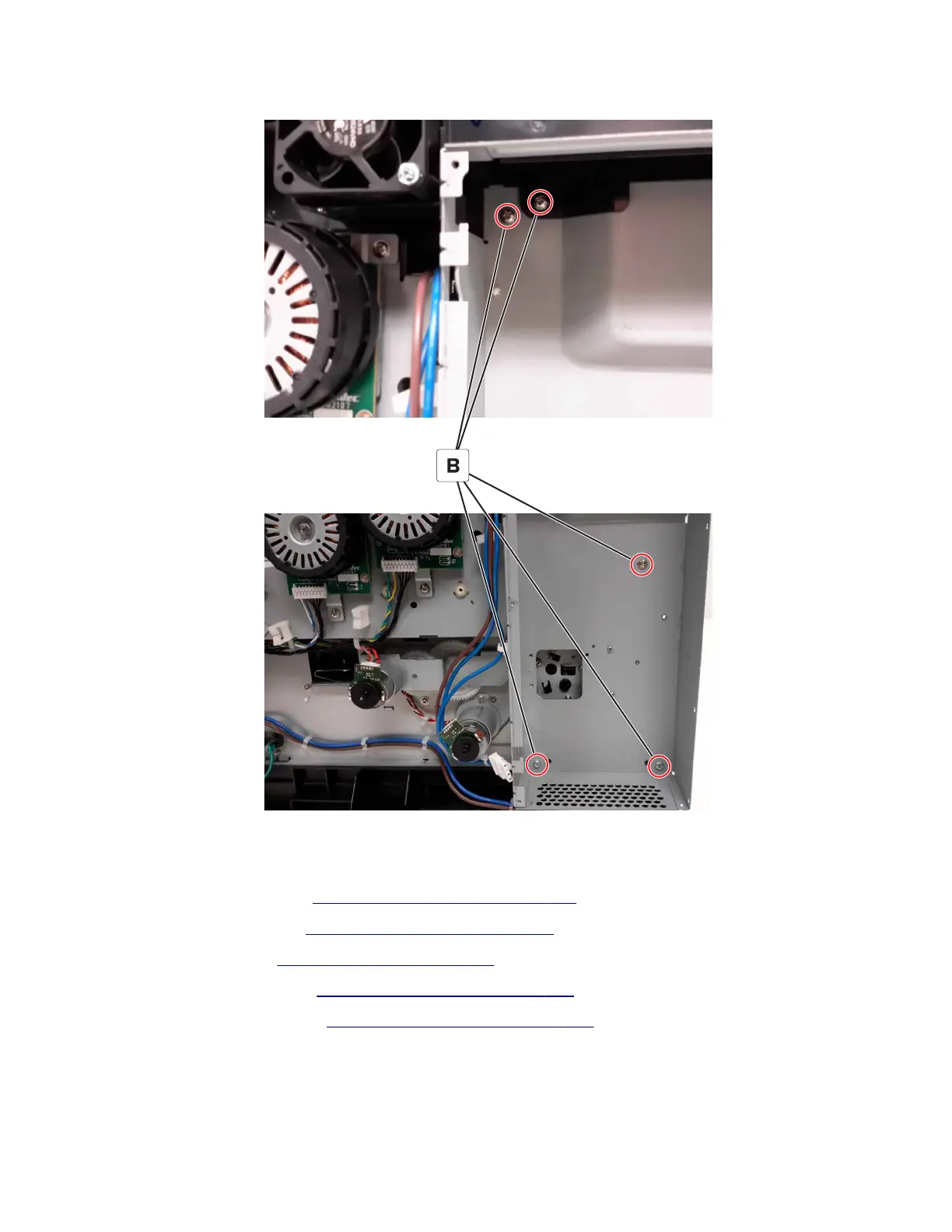

4 Remove the five screws (B) from the inside of the cage, and then remove the cage.
Motor (black only retract) removal
1 Remove the front cover. See“Front cover removal” on page 265.
2 Remove the left cover. See “Left cover removal” on page 271.
3 Remove the LVPS. See “LVPS removal” on page 305.
4 Remove the LVPS cage. See “LVPS cage removal” on page 308.
5 Remove the EP gear box. See “EP gear box removal” on page 302.
5028
Repair information
309
