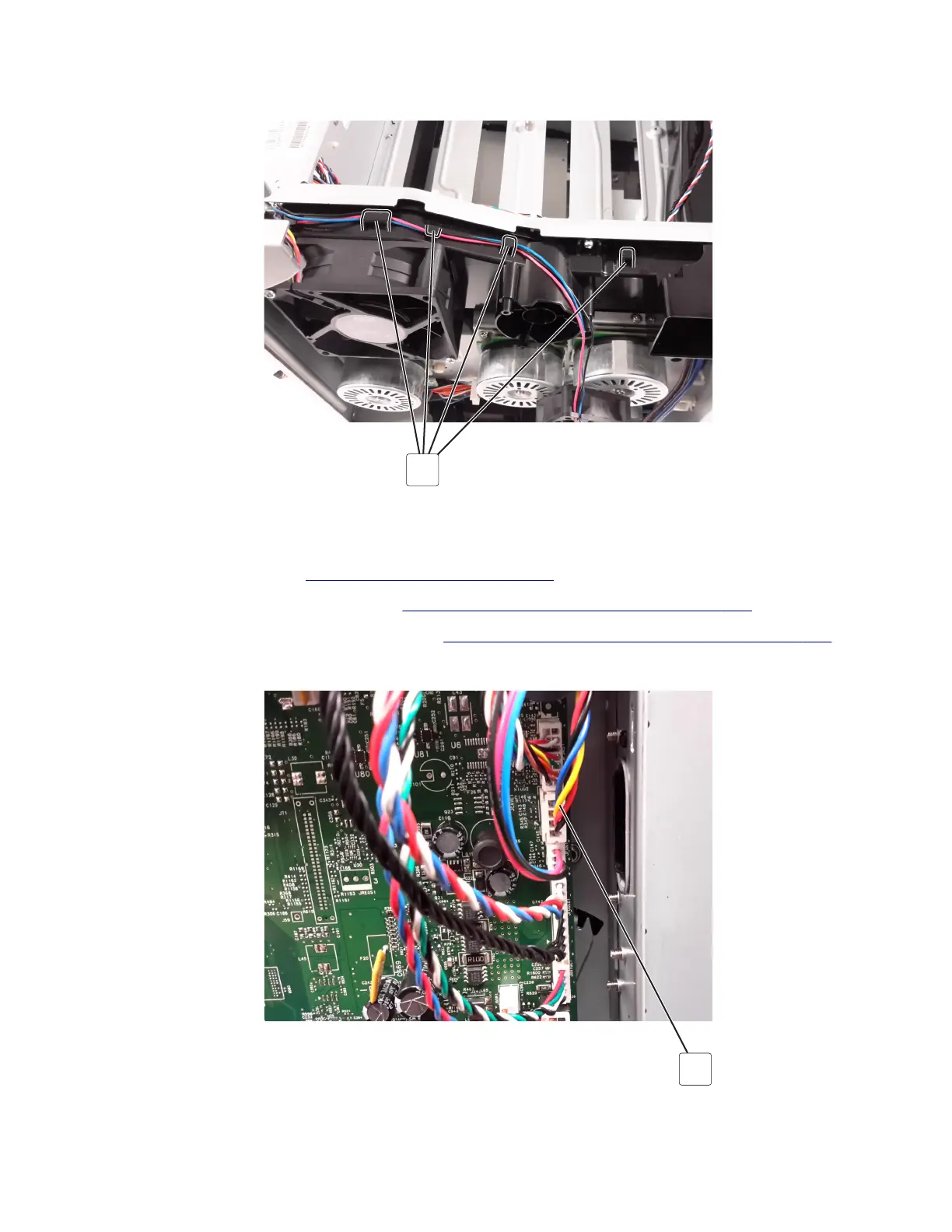

6 Route the fuser fan cable out of the retainers (C), and then remove the fan.
C
Main fan removal
1 Remove the left cover. See “Left cover removal” on page 271.
2 Remove the controller board shield. See “Controller board shield removal” on page 356.
3 Remove the inner controller board shield. See “Inner controller board shield removal” on page 357.
4 Disconnect the main fan cable (A) from the controller board.
A
5028
Repair information
301
