Number pad cover removal
1 Remove the badge cover. See “Badge cover removal” on page 283.

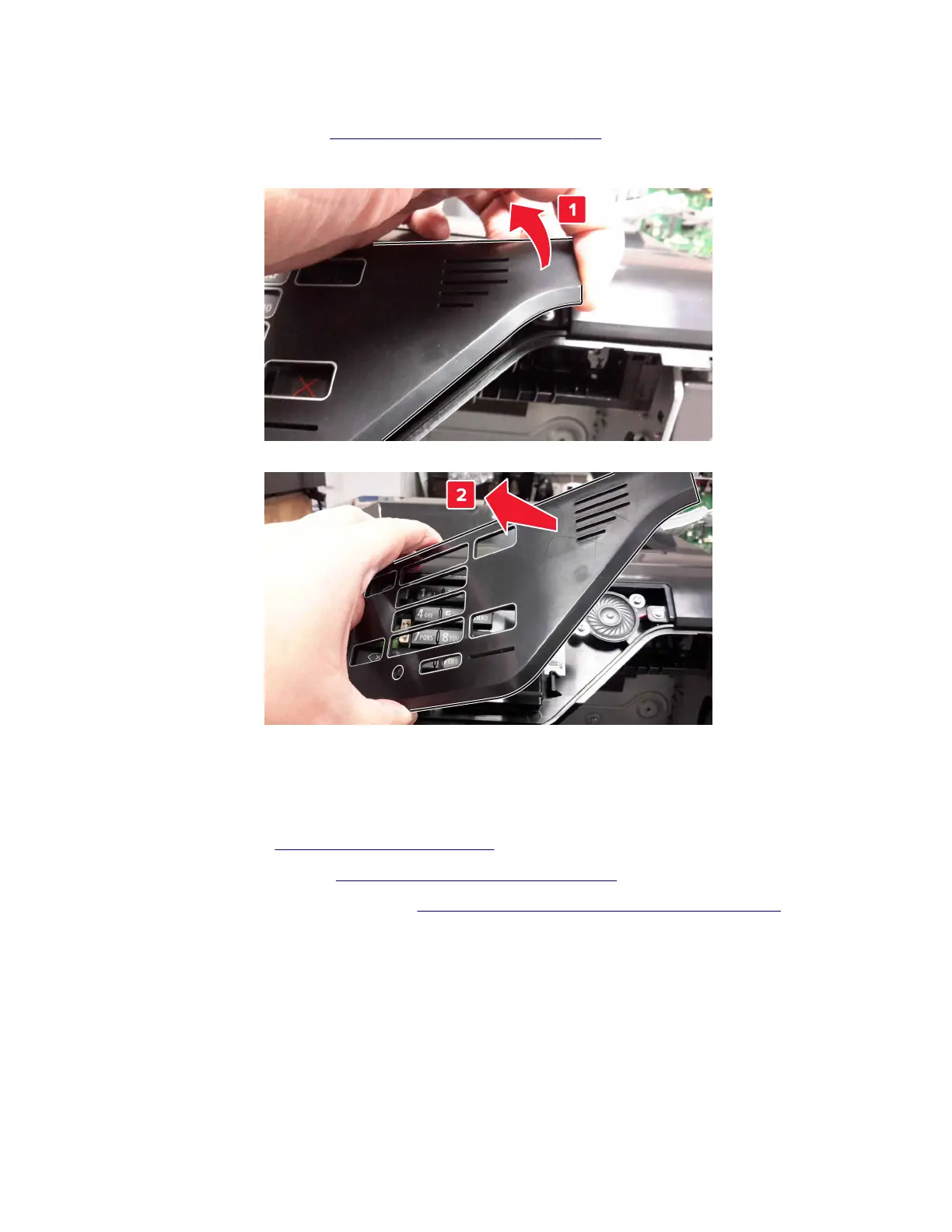

2 Remove the number pad cover.
Control panel arms removal
Note: The control panel arms are two separate FRUs. This procedure shows how to remove both arms.
1 Remove the fuser. See “Fuser removal” on page 333.
2 Remove the redrive guide. See “Redrive guide removal” on page 354.
3 Remove the control panel base cover. See “Control panel base cover removal” on page 287.
5028
Repair information
284
