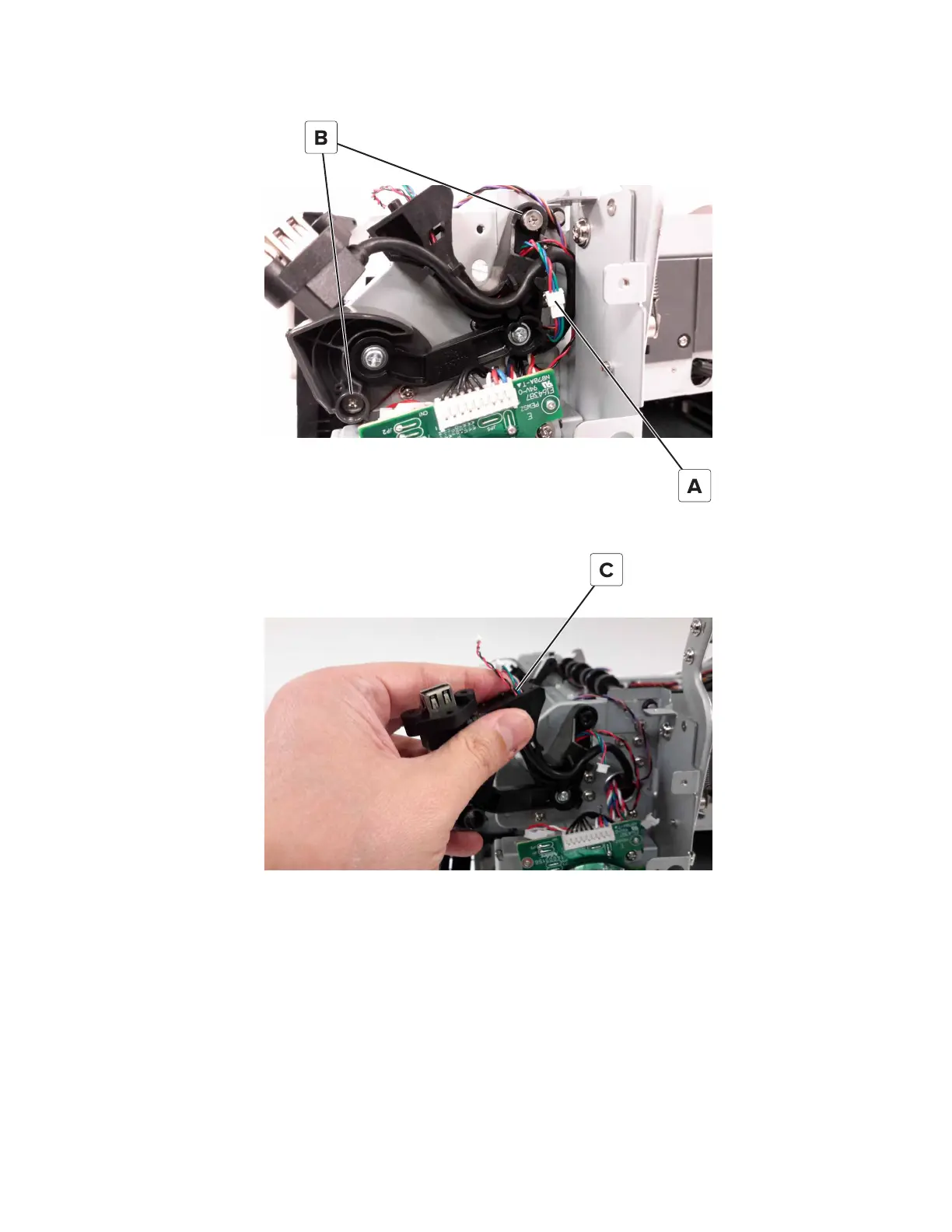

4 Disconnect the cable (A), and then remove the two screws (B).
5 Remove the arm, and then route the cables (C) out of the right arm.
5028
Repair information
285
