Lexmark CS725R Service Manual

Left removals
Motor (EP drive) removal
This removal shows how to remove all three motors. The motors can be replaced individually.
1 Remove the left cover. See “Left cover removal” on page 271.

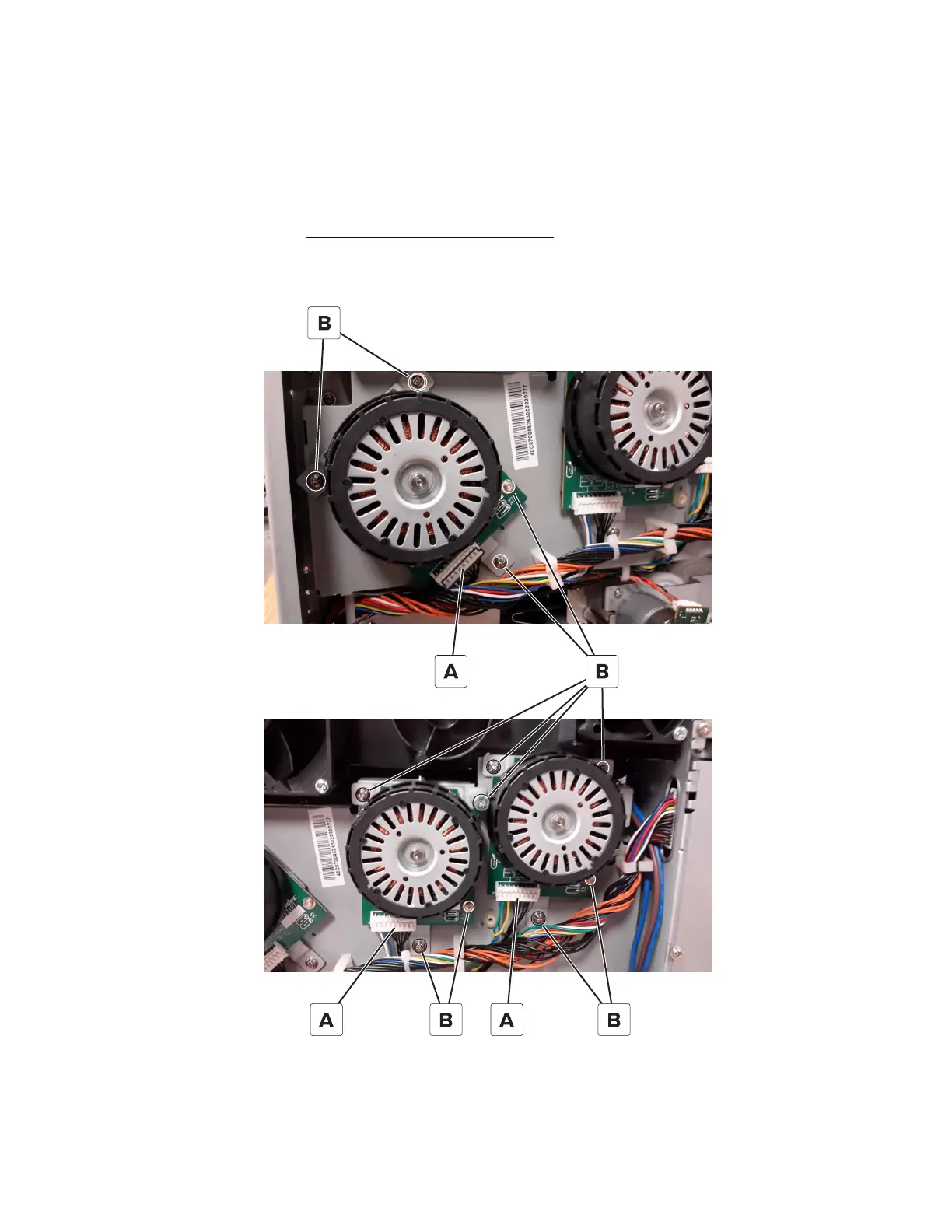

2 On each of the motor, disconnect the motor cable (A), remove the four screws (B), and then remove the
motor.
5028
Repair information
296
