6

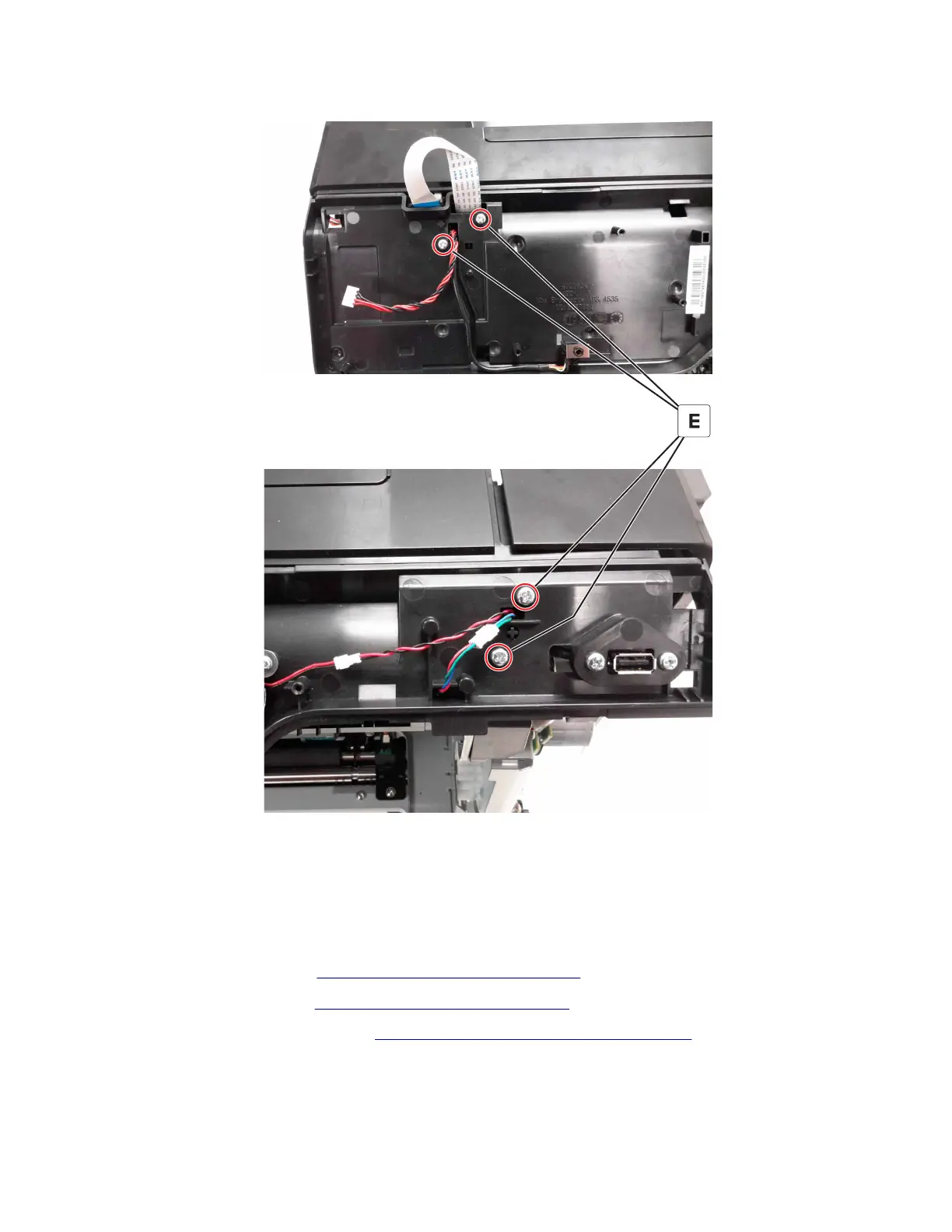

R
emove the four screws (E),
and then remove the cover
.
Duplex removals
Duplex outer guide removal
1
R
emove the front cover
. See
“Front cover removal” on page
265
.
2
R
emove the
pivo
t shaft. See
“Pivot shaf
t removal” on page
291
.
3
R
emove the duplex inner guide. S
ee
“Duplex inner guide remova
l” on page
291
.
5028
R
epair inform
ation
289
