Tensioner belt removal
1 Remove the front cover. See “Front cover removal” on page 265.
2 Remove the duplex inner guide. See “Duplex inner guide removal” on page 291.
3 Remove the pivot shaft. See “Pivot shaft removal” on page 291.

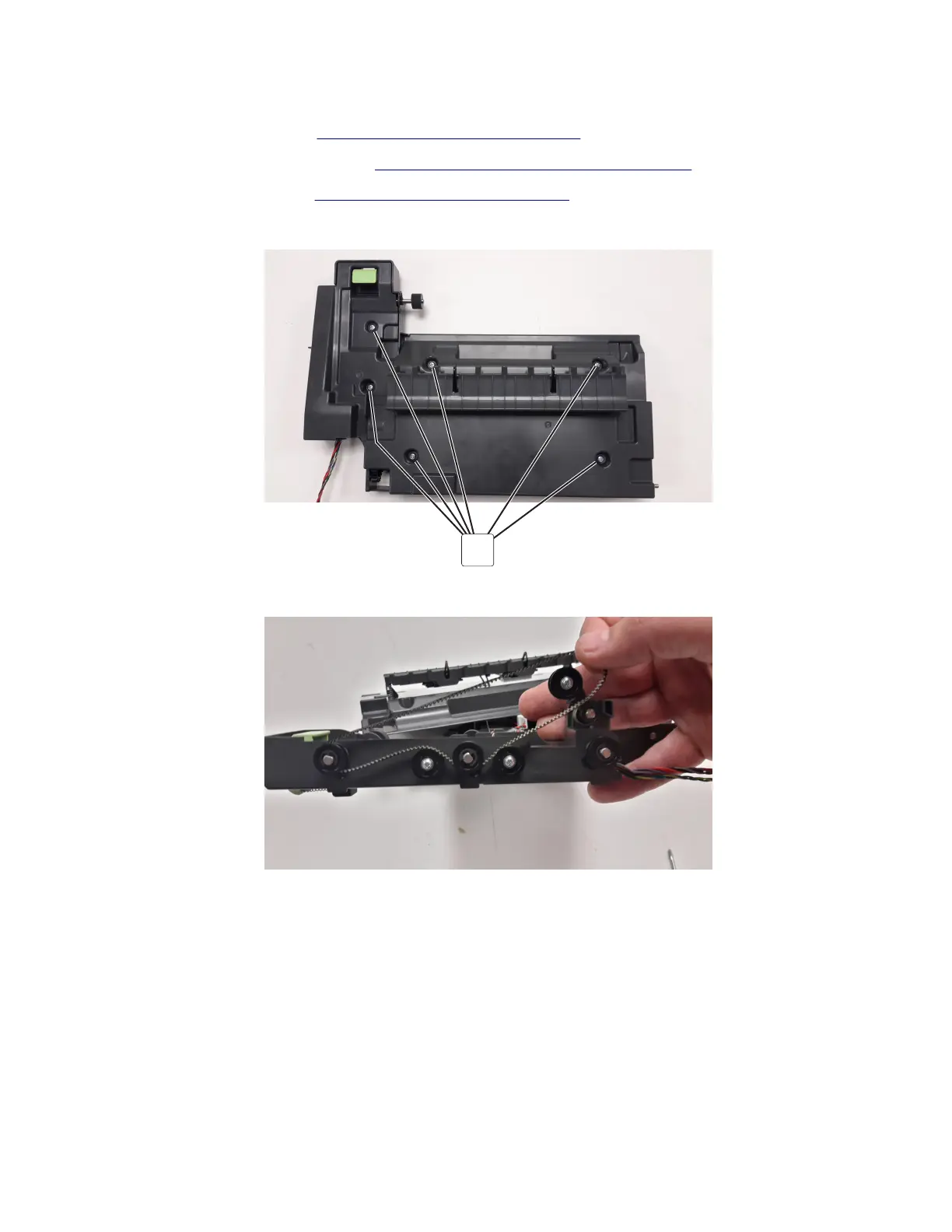

4 Remove the six screws (A), and then remove the cover.
A
5 Remove the belt.
Note: Pay attention to the belt path before removing the belt.
