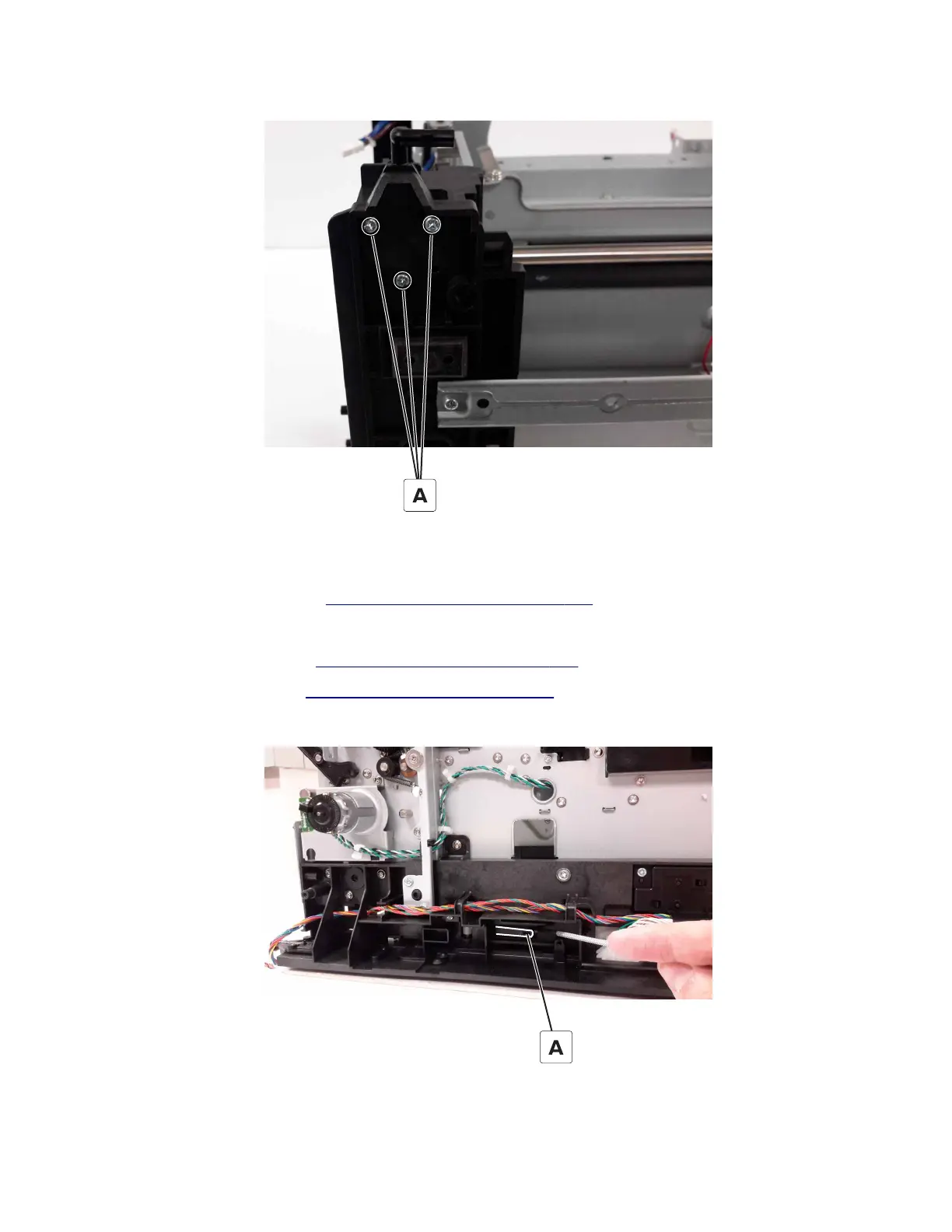

3 Remove the three screws (A) securing the hinge, and then remove the hinge.
Tray rail removal
1 Remove the motor cover. See “Motor cover removal” on page 273.
2 Remove the waste toner bottle.
3 Remove the right cover. See “Right cover removal” on page 272.
4 Remove the left cover. See “Left cover removal” on page 271.
5 Pull the tab (A) on the rail.
5028
Repair information
369
