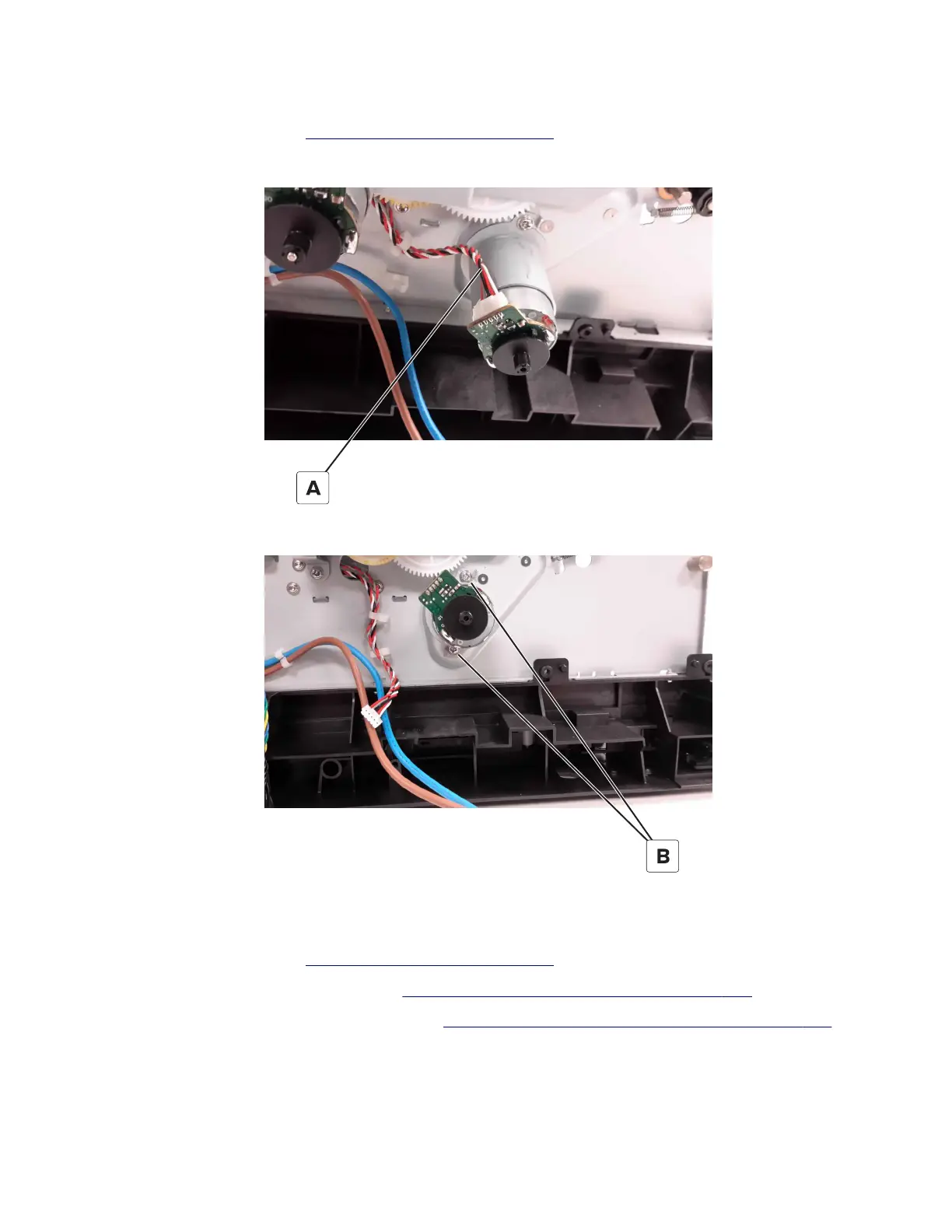

Motor (deskew) removal
1 Remove the left cover. See “Left cover removal” on page 271.
2 Disconnect the motor cable (A).
3 Remove the two screws (B), and then remove the motor.
Fuser fan removal
1 Remove the left cover. See “Left cover removal” on page 271.
2 Remove the controller board shield. See “Controller board shield removal” on page 356.
3 Remove the inner controller board shield. See “Inner controller board shield removal” on page 357.
5028
Repair information
299
