4
R

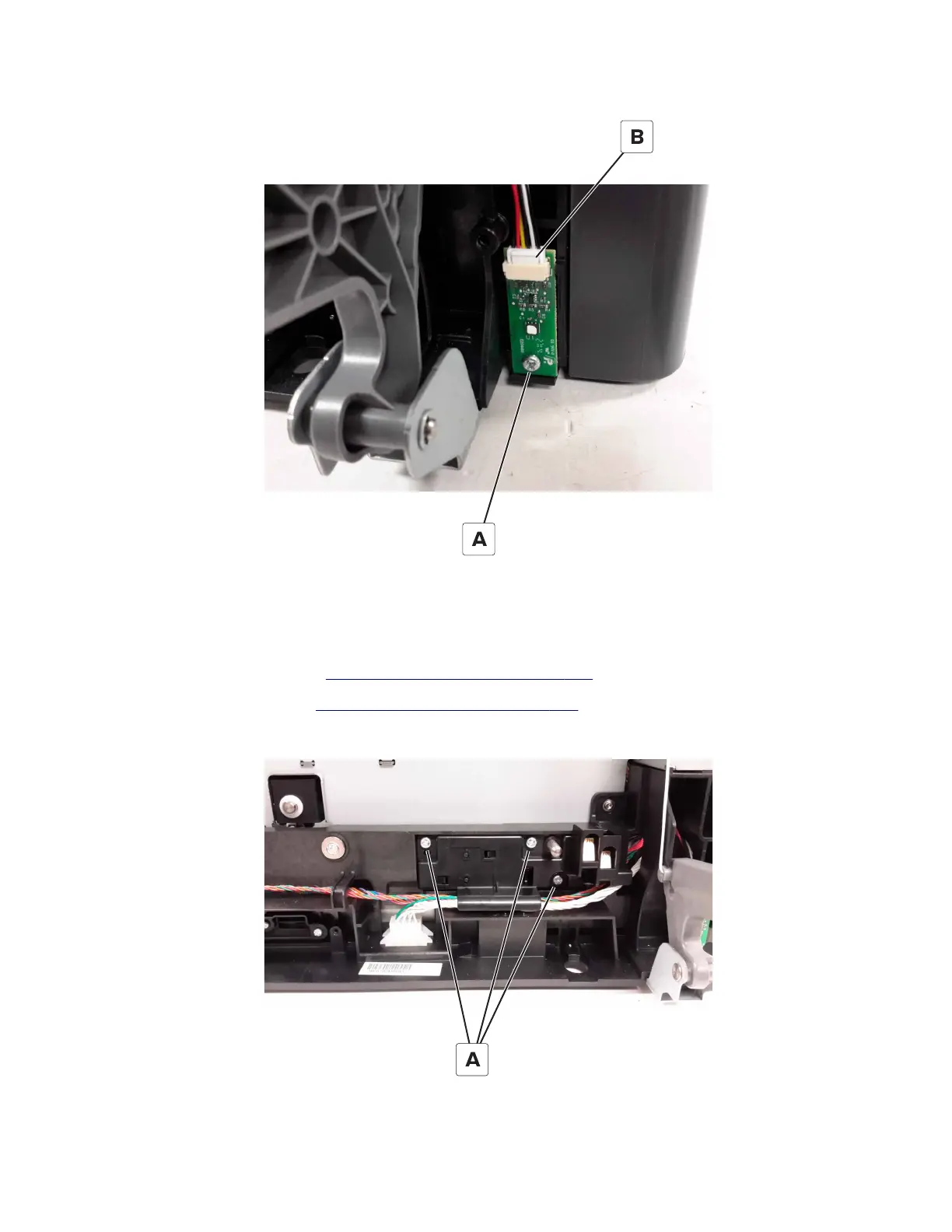

emove the screw (A), disconnect the ca
ble (B), and then remove the
sensor
.
Sensor (paper size) removal
1
R
emove the waste toner bottle.
2
R
emove the motor cover
. See
“Motor cover removal” on page
273
.
3
R
emove the
right cover
. See
“Right cover removal” on page
272
.
4
R
emove the three screws (A).
5028
R
epair inform
ation
312
311
313
