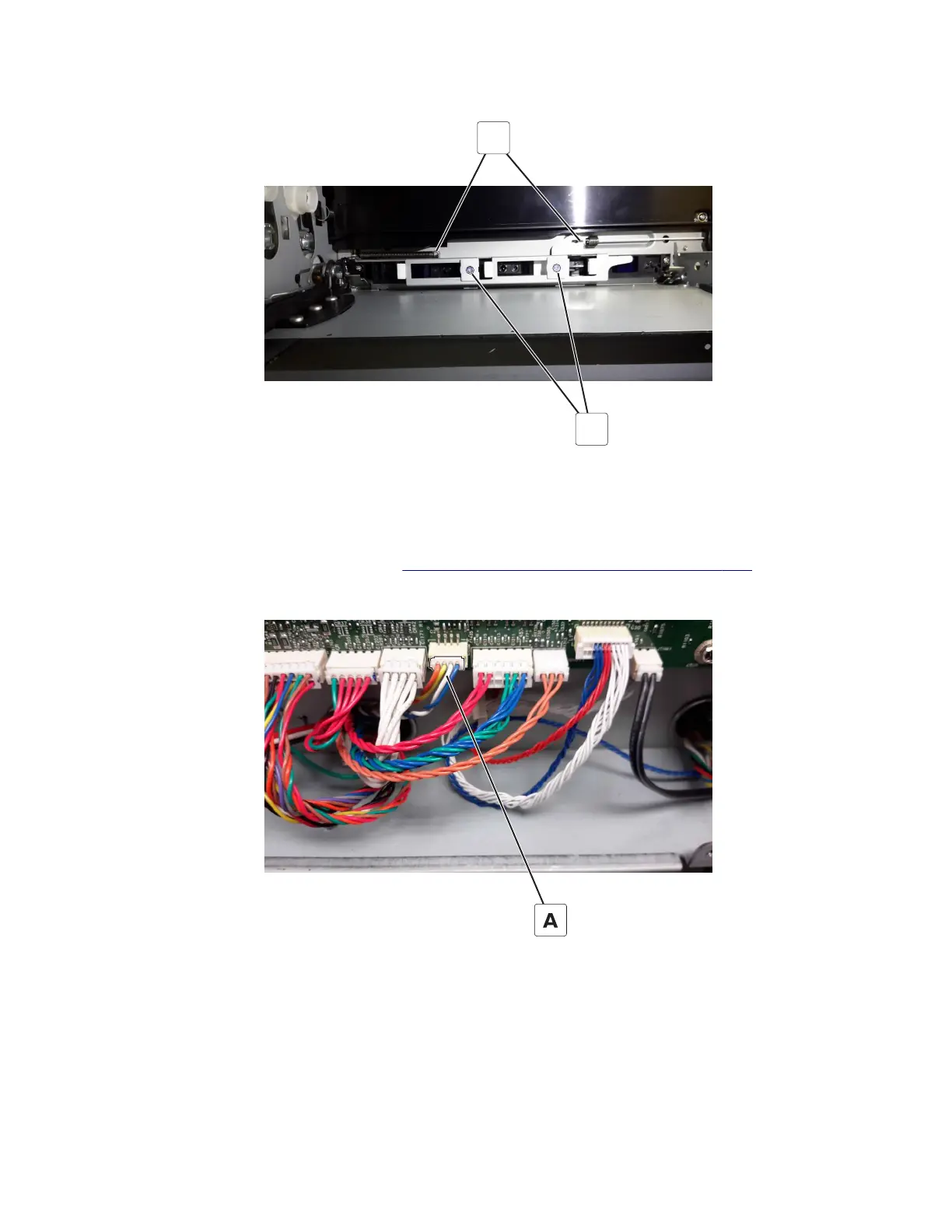

3 Remove the two screws (C), and then remove the sled.
C
B
Toner cartridge contacts removal
1 Remove the imaging unit.
2 Remove the controller board shield. See “Controller board shield removal” on page 356.
3 Disconnect the toner cartridge contacts cable (A) from the controller board.
5028
Repair information
328
