Lexmark CS725R Service Manual

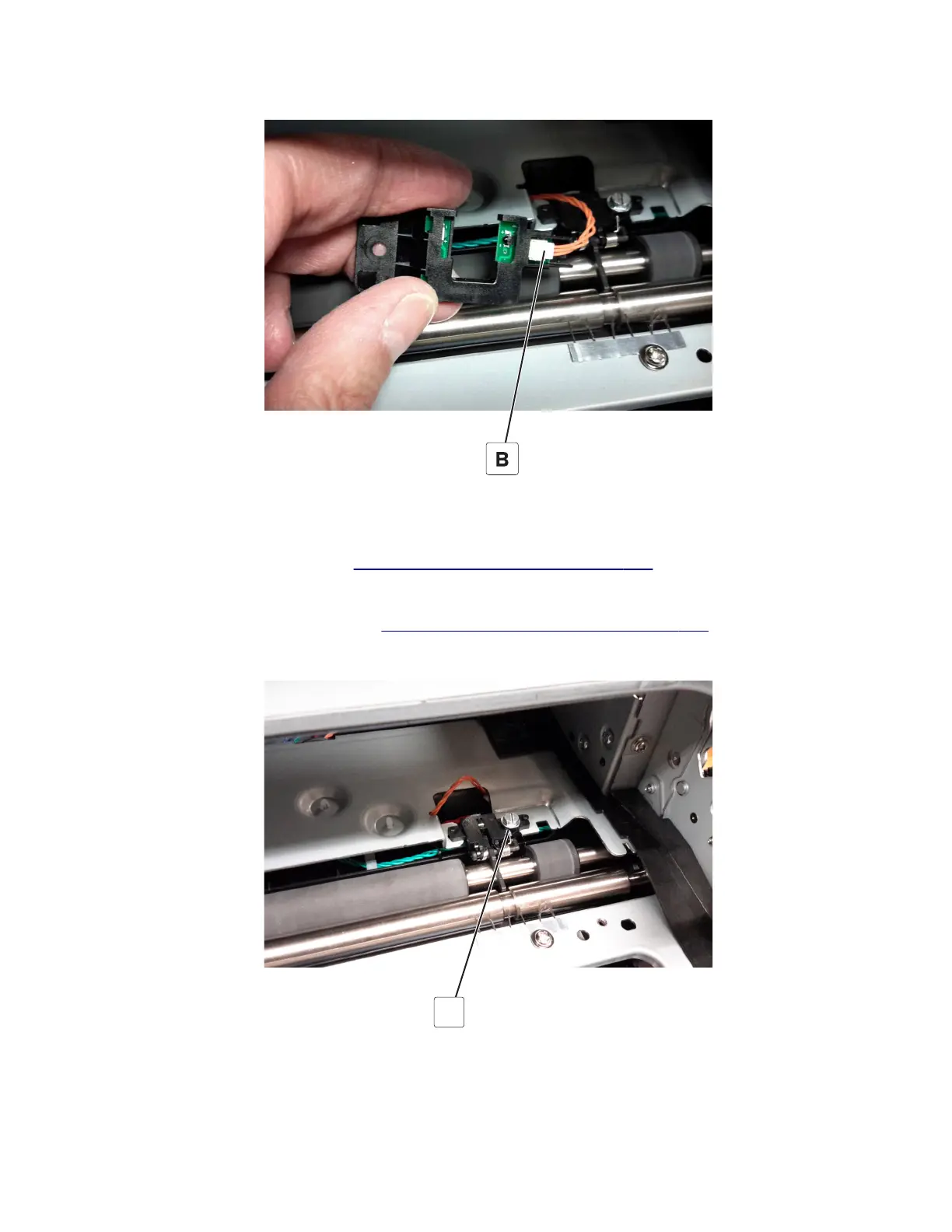

4 Disconnect the sensor cable (B), and then remove the sensor.
Sensor (input) removal
1 Remove the transfer module. See “Transfer module removal” on page 334.
2 Open the front door.
3 Remove the sensor (media type). See “Sensor (media type) removal” on page 340.
4 Remove the screw (A).
A
5028
Repair information
341
