TPS cables removal
1 Remove the controller board shield. See “Controller board shield removal” on page 356.
2 Remove the inner controller board shield. See “Inner controller board shield removal” on page 357.
3 Remove the controller board. See “Controller board removal” on page 357.

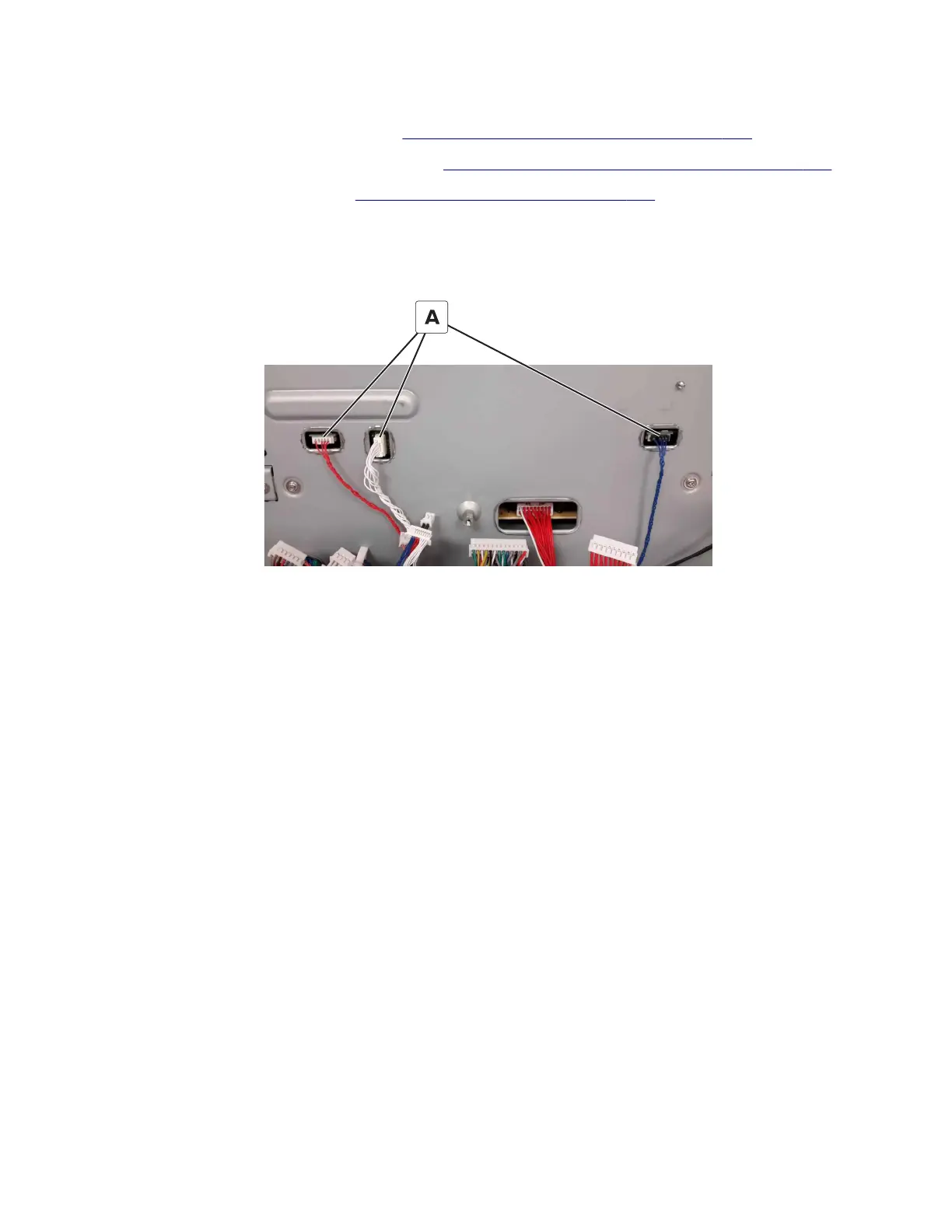

4 Disconnect the three cables (A) from the sensor.
Warning—Potential Damage: Be careful when disconnecting the cables. Press the tab on the white cable
while disconnecting to avoid damage.
5 Remove the cables.
