Sensor (550-sheet tray index) removal

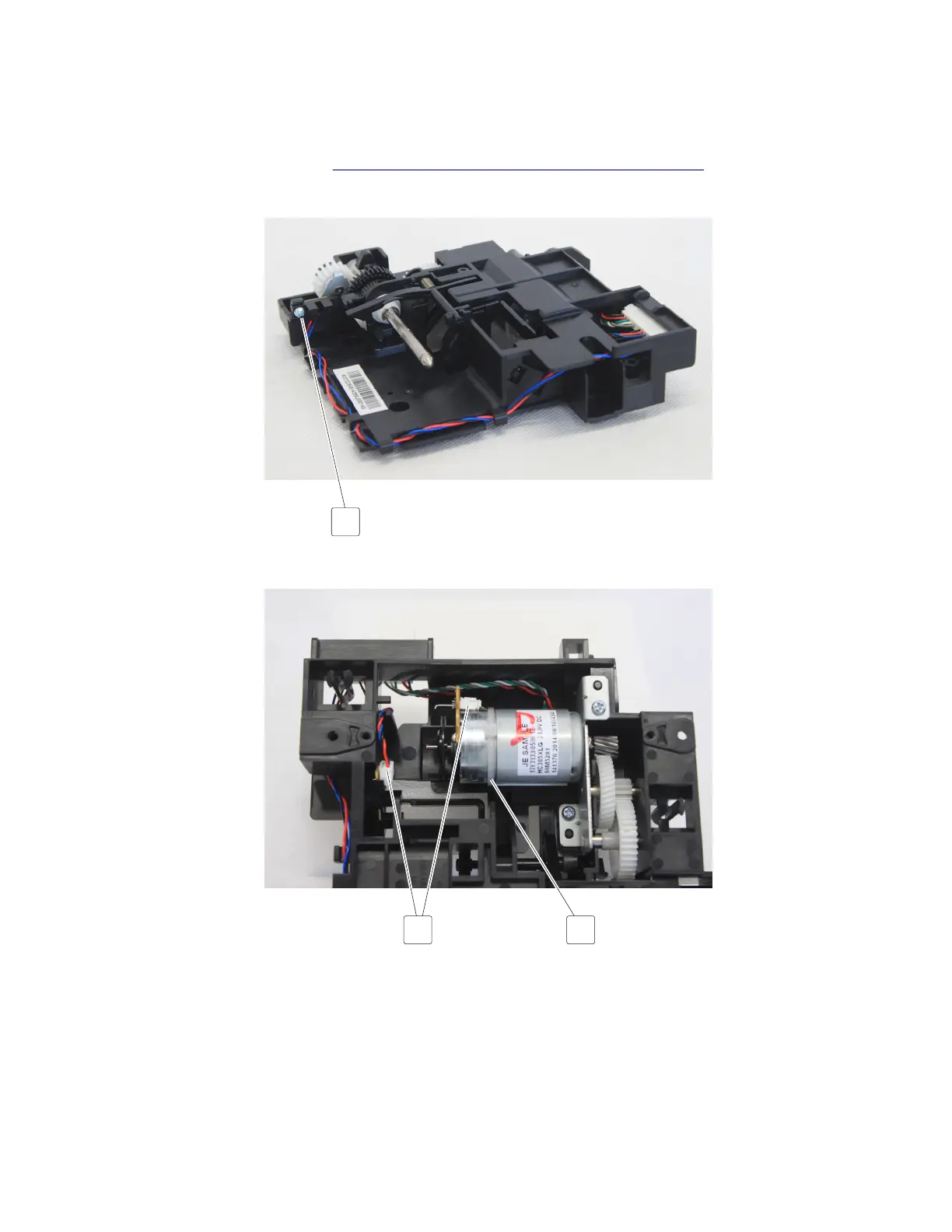

1 Remove the tray insert.
2 Remove the paper feeder. See “550-sheet tray right cover removal” on page 375.
3 Remove the screw (A).
A
4 Disconnect the two cables (B), and then cut the zip tie (C).
CB
5028
Repair information
386
