Installation note: Make sure to replace this screw first before replacing the three screws to secure the
unit.

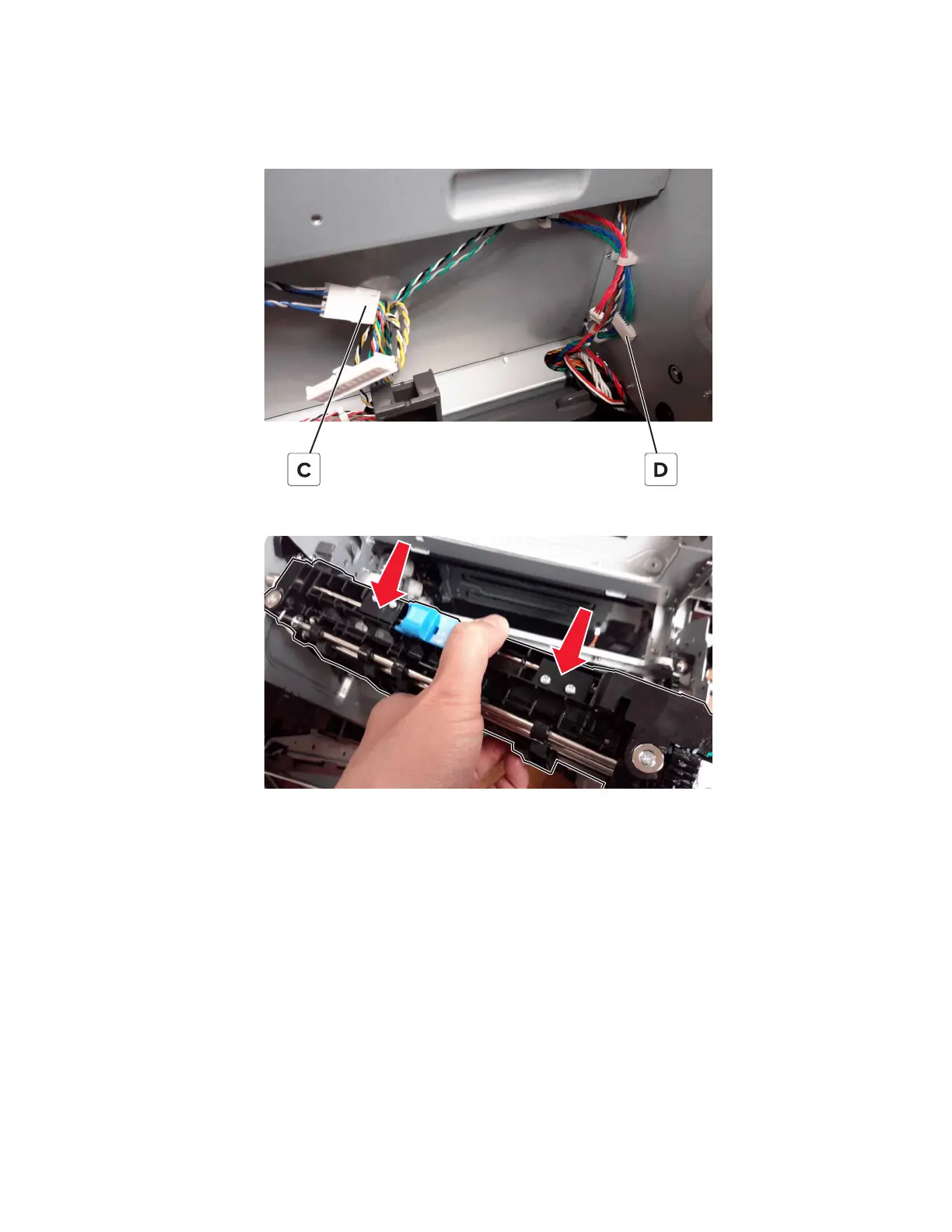

5 Disconnect the motor cable (C) and sensor cable (D).
6 Tilt the right portion of the isolation unit to the front, and then remove the unit.
7 Route the isolation unit cables out of the printer.
Media feeder removal
Warning—Potential Damage: Remove the waste toner bottle and imaging kit first before removing the
media feeder. Failure to do this can lead to toner spillage and damage to the printer.
1 Remove the imaging unit.
2 Place printer on its back, and then disconnect the cables.
3 Remove the pick roller assembly.
5028
Repair information
373
