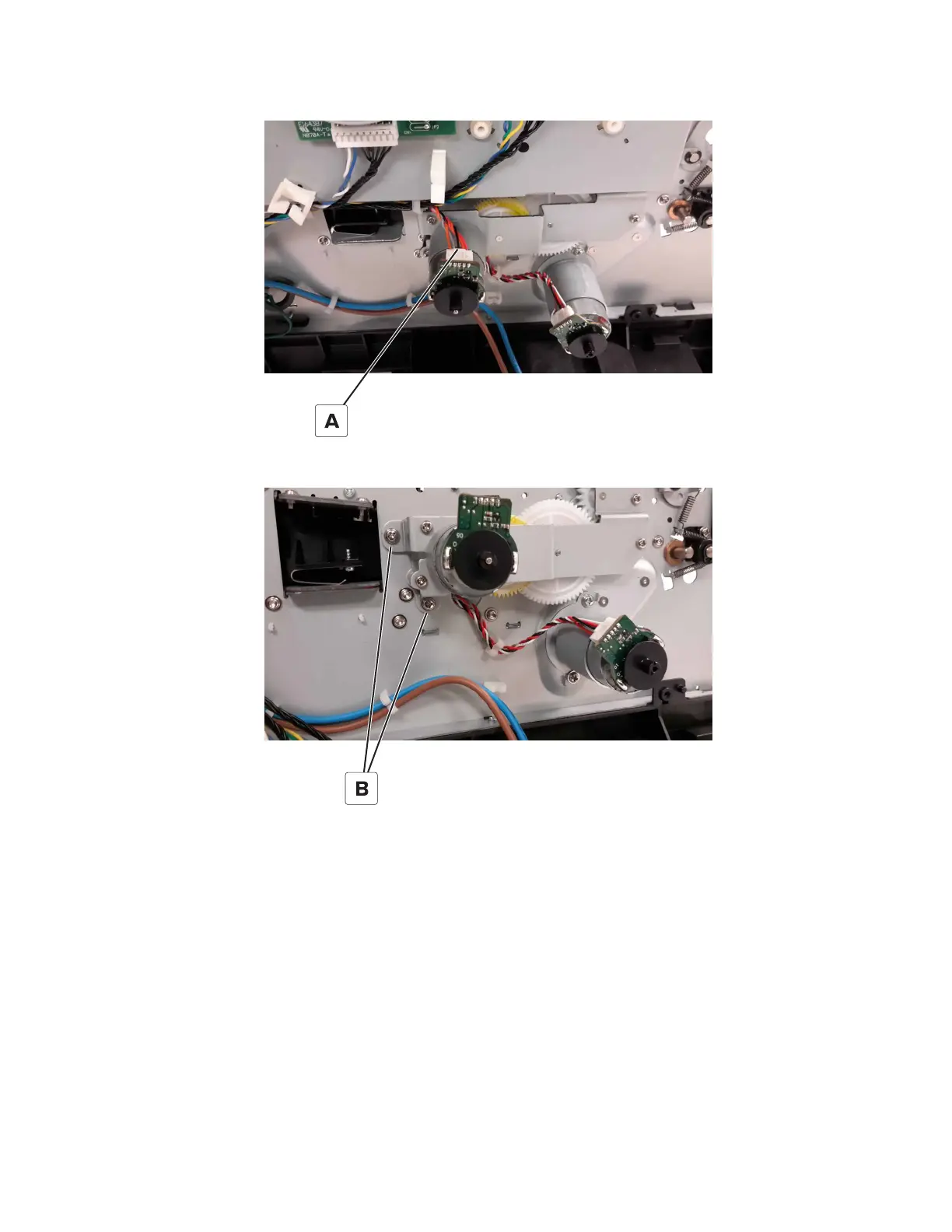

6 Disconnect the black only retract motor cable (A).
7 Remove the two screws (B).
5028
Repair information
310
