Lexmark CS725R Service Manual

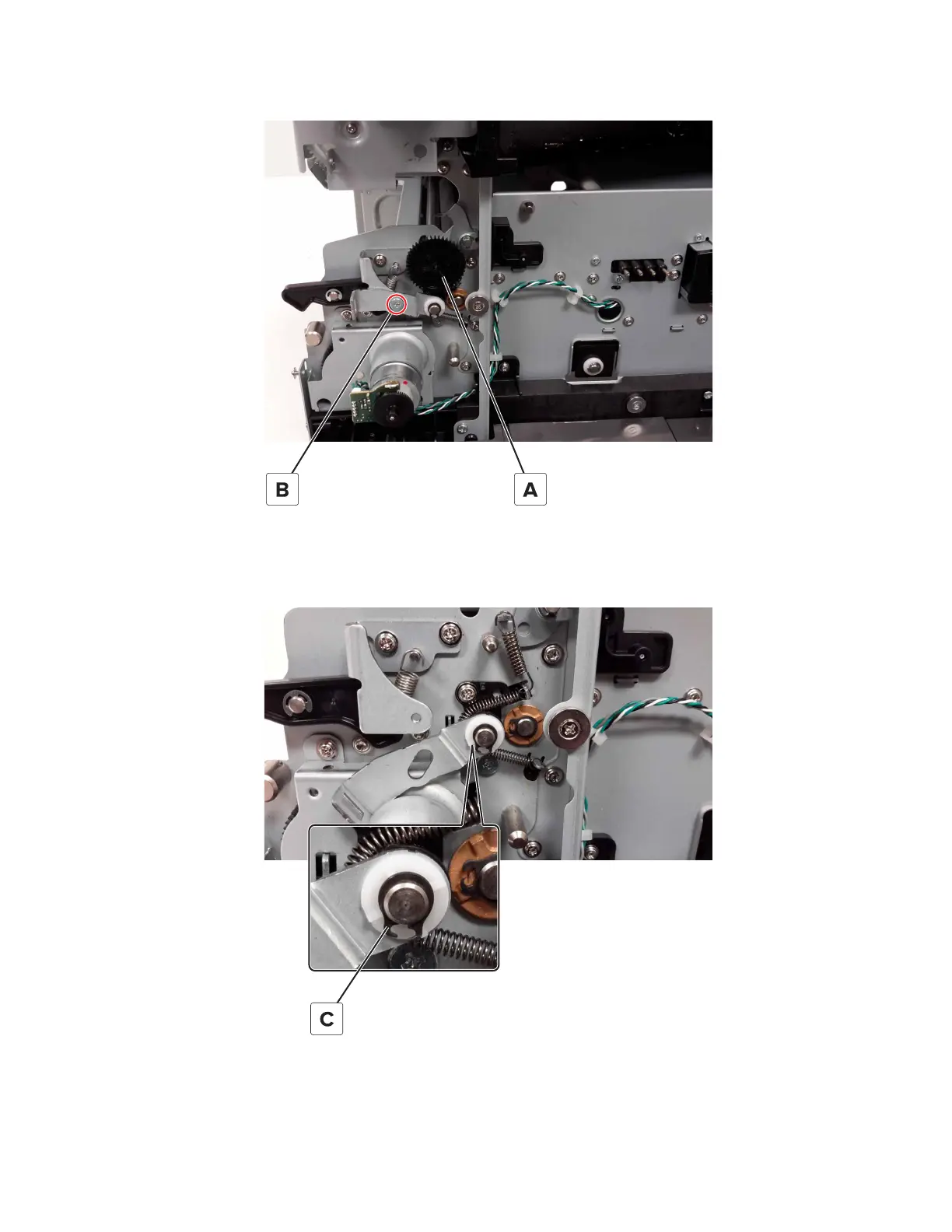

7 On the right side of the printer, remove the gear (A), and then remove the screw (B).
8 Remove the clip (C), and then remove the spacer.
Warning—Potential Damage: Be careful not to over extend the clip when removing or installing to avoid
damage.
5028
Repair information
343
