5 Disconnect the cables JUSBF1 (for MS610dn only) and JUICC1 and from the controller board.

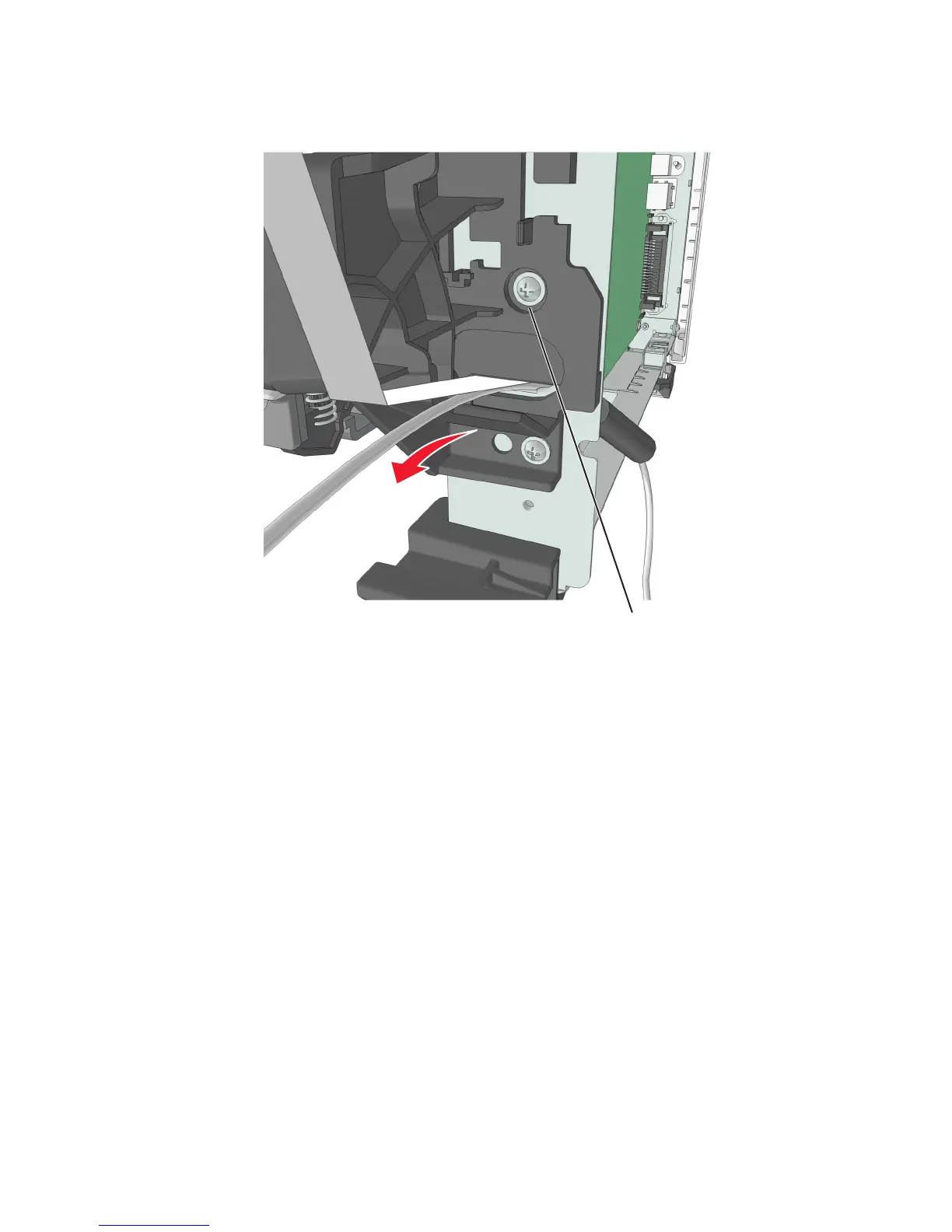

6 Remove the screw (B) from the right front mount, and route the cables through the slot.

B

4514-630, -635, -636

Repair information

202
