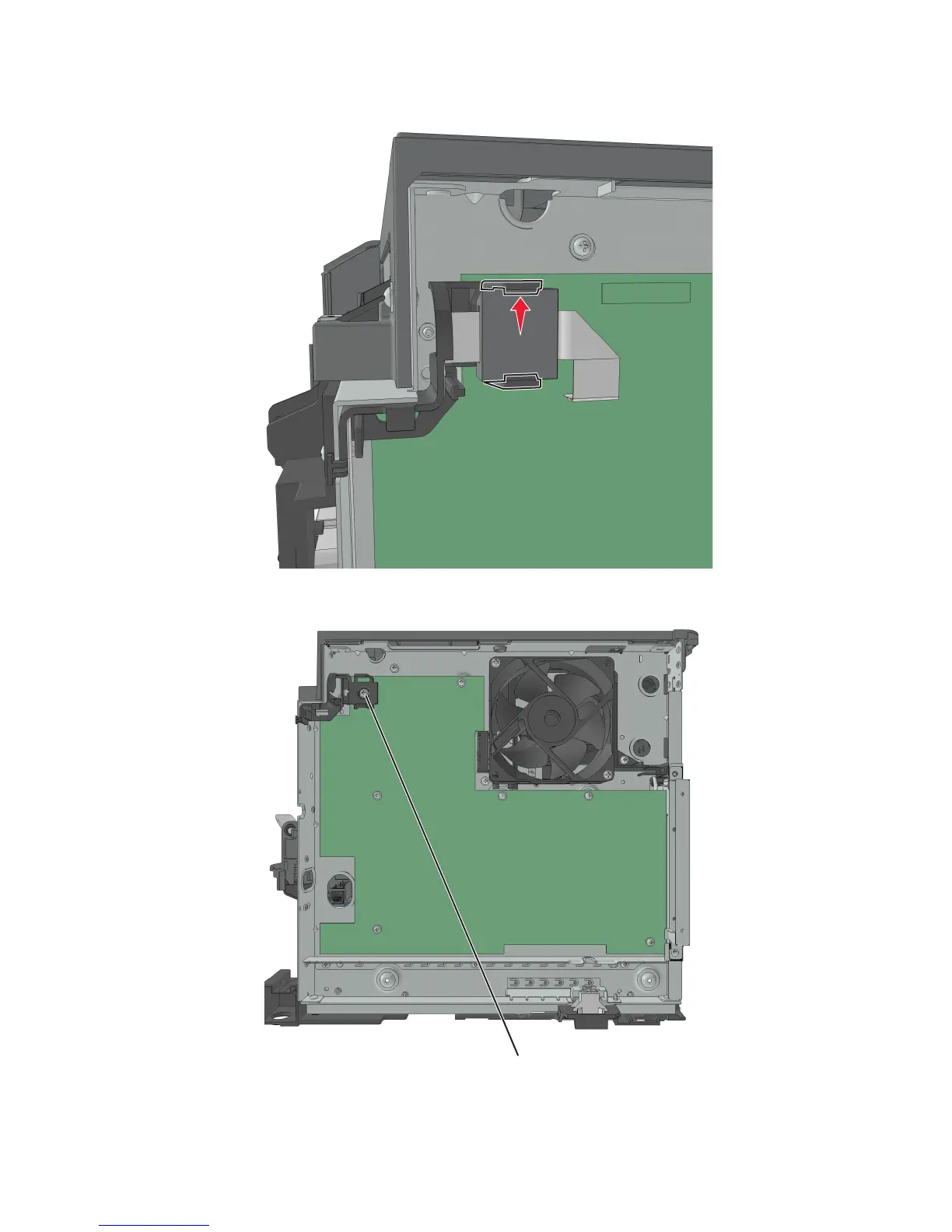

4 Remove the toroid.

5 Remove the screw (A) securing the ground connector to the controller board.

6 Disconnect the cables JUICC1 and J24 from the controller board.

4514-630, -635, -636

Repair information

204
