Safety First
11

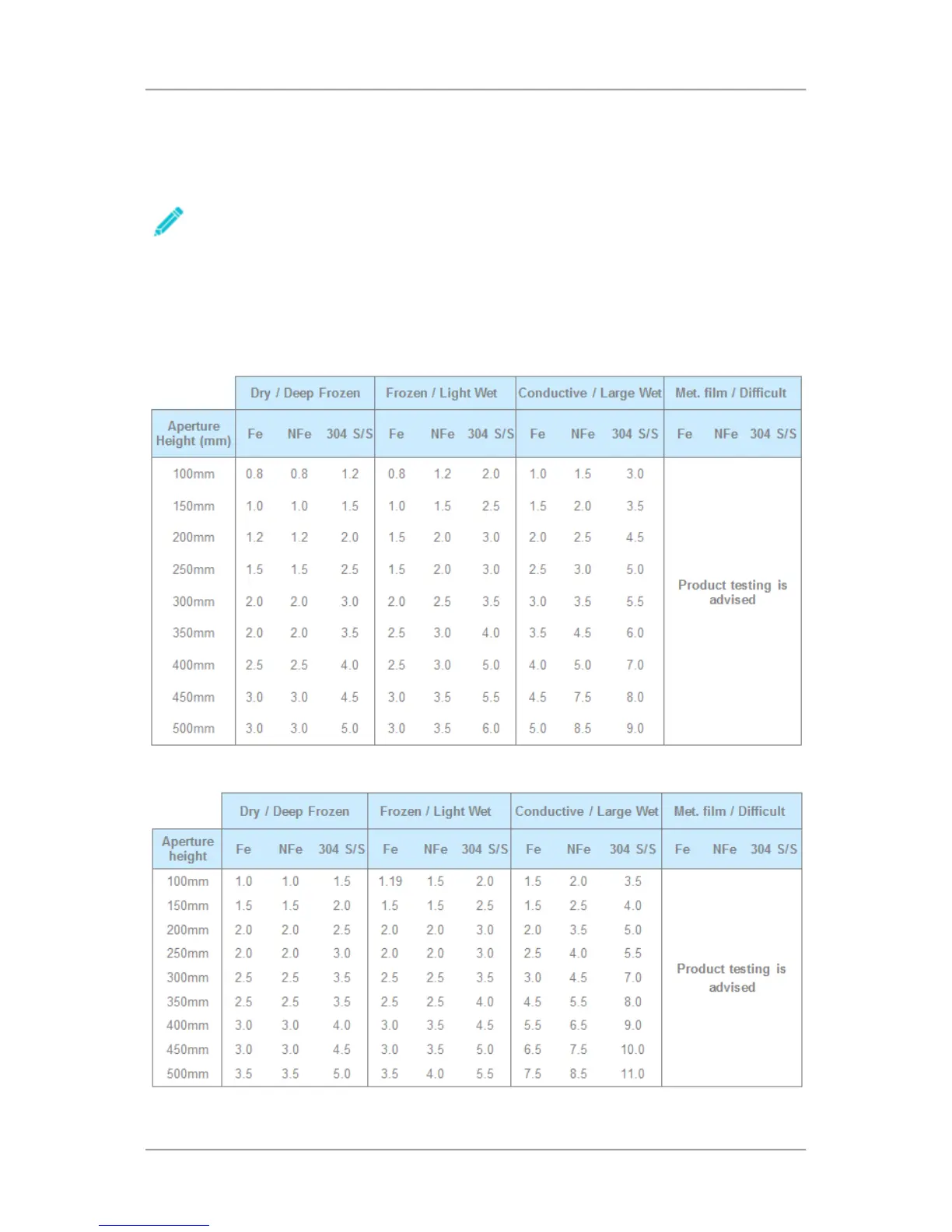

The tables below provide typical predicted levels of detection provided by the IQ
3
+ Metal Detector,
depending on the height of the head aperture and the product type being inspected.
Each value shown is the diameter in millimetres (mm) of a spherical metal contaminant, as contained
in Loma test wands.
The detection performance figures quoted in the tables below are for indication purposes
only and are based on previous experience with similar products and applications. The
estimation of detection level does not take into account excessive product effect or
interference. Full product tests are required to validate any detection performance
estimation.
The figures are also based on heads up to 650mm wide. Above this width there will be a
drop in performance that could be up to 0.5mm, depending on the width / length ratio.
Standard Blue Head Aperture Liner
Ultra Harsh White Aperture Liner
