■ Drive shutdown - the maximum drive current of 300mA for the operating frequency in use has
been exceeded and even when reverting to safe mode operation the drive current is still above
the limit, the drive then shuts down.
■
FET overheated - the temperature of the transmitter drive components are operating at too high
a temperature.
■
Drive fuse failed - the current for the DC power used by the transmitter board has exceeded the
fuse rating.
Setup Report
Purpose
The Setup Report is automatically created and sent when changing product or can be manually
requested from the Setup Report screen.
When automatically sent, the report is for the product being changed to. When manually requested it
is for the current running product. The report contains product and learn setup data.
Select the Setup Report option in the Logs/Reports

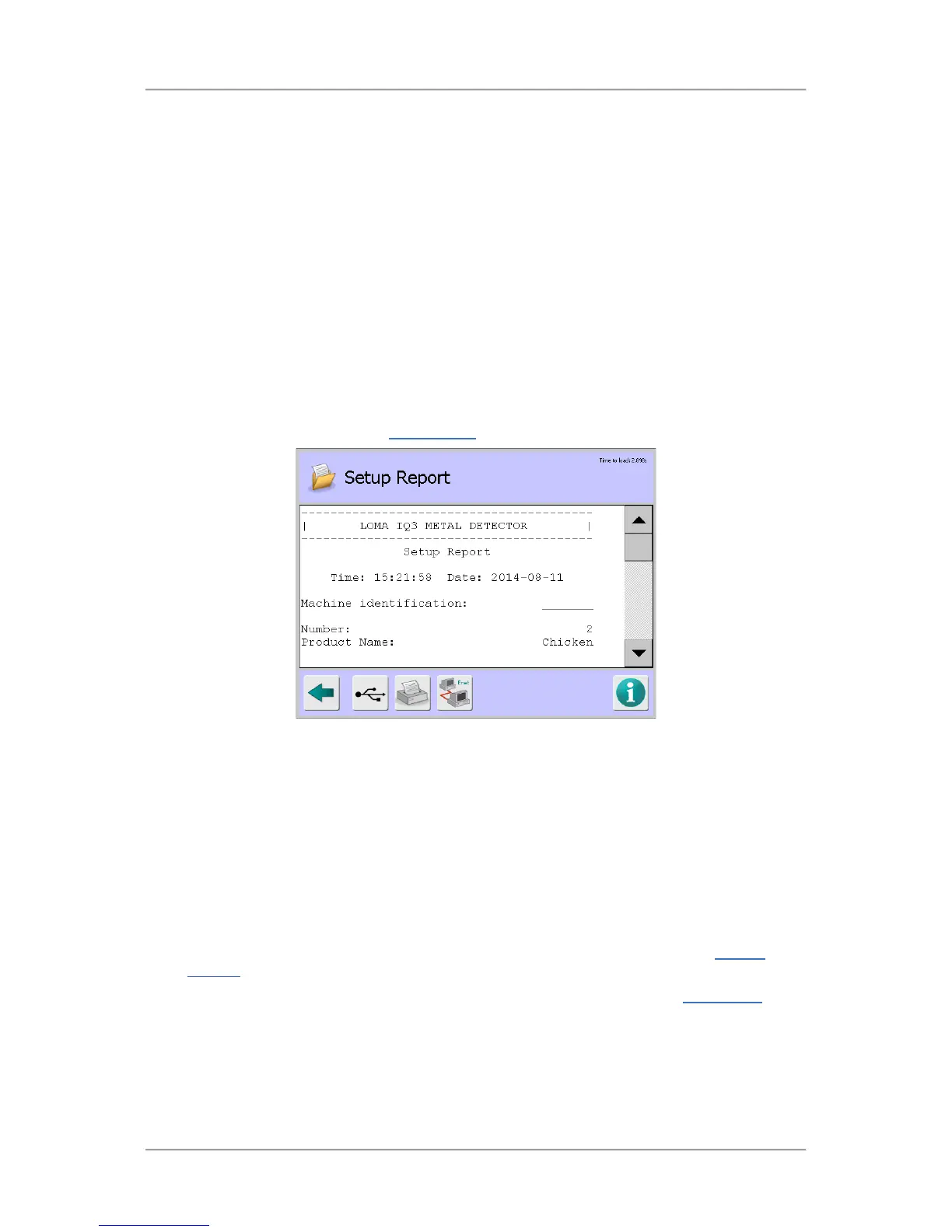

screen to display the Setup Report screen.
Screen Contents
The report contains information in several sections as described below.
■
Setup Report - This section contains the following general information:
O
Time – Displays the time that the report was generated.
O
Date – Displays the date that the report was generated.
O
Machine Identification – Displays the machine ID.
O
Number – Displays the product number.
O
Product Name – Displays the product name.
■
Product Settings – This section includes a list of the parameters available in the Product
Settings screen and their associated values and selections.
■ Learn Setup – This section includes a list of the parameters available in the Learn Setup
screen and their associated values and selections.
