CAMSHAFT
DRIVING
BELT (TOOTHED BELT)
The camshaft driving belt
is
fitted with an automatic belt terlsioner assembly (early
vehicles are fitted with manual adjusters). Check the adiustrnent of the driving belt
at service
intewals and if the belt
is
removed or a new belt
is
fitted.

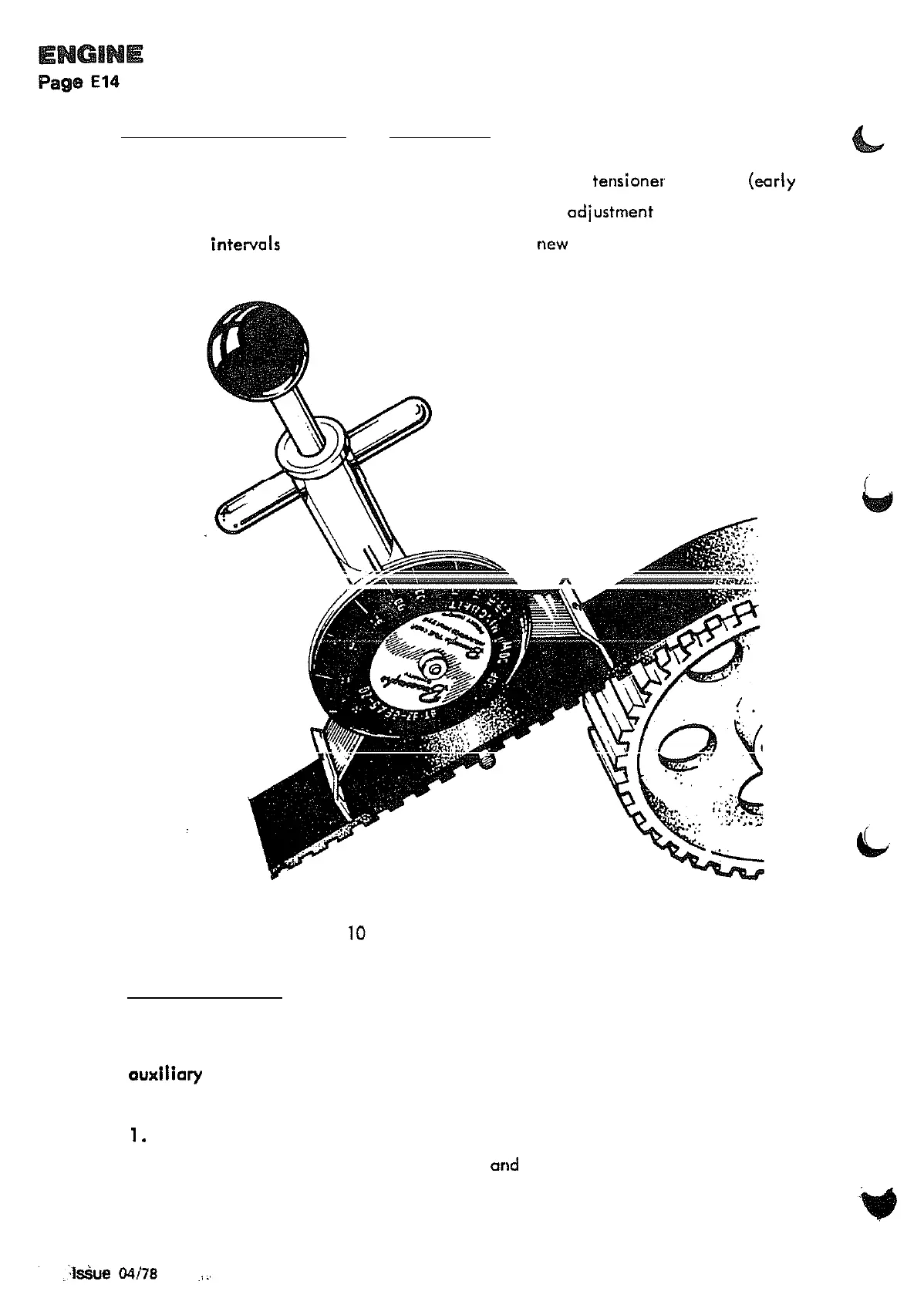

Fig.
l0
Burrough's gauge in position
Belt Tension Check
Check the belt tension using a Burrough's Gauge BT
-
33
-
86A
5
-
20
fitted between the
auxiliary shaft sprocket and the inlet cam shaft sprocket. Check
TECHNICAL
DATA
for
the correct tension.
1.
Fully extend the hook by pushing handle completely down.
2.
Insert the belt between nose piece and hook, ensuring hook is between
belt teeth.
ESPRIT
.
'
:IsSue
04/78
.. ..
