FUEL
SYSTEM
Page
L31
Flwt Chamber Level
1.
When correctly set, and with the float chamber cover in the vertical
position with the
flwts hanging down, but with the tab of the flwts in light
contact with the needle, the measurement should be
16.5/17
mm, including
the gasket (dimension
'A').
2.
To adjust the float level, bend the float arms at 'C' to achieve this
dimension.
d
REMOVAL

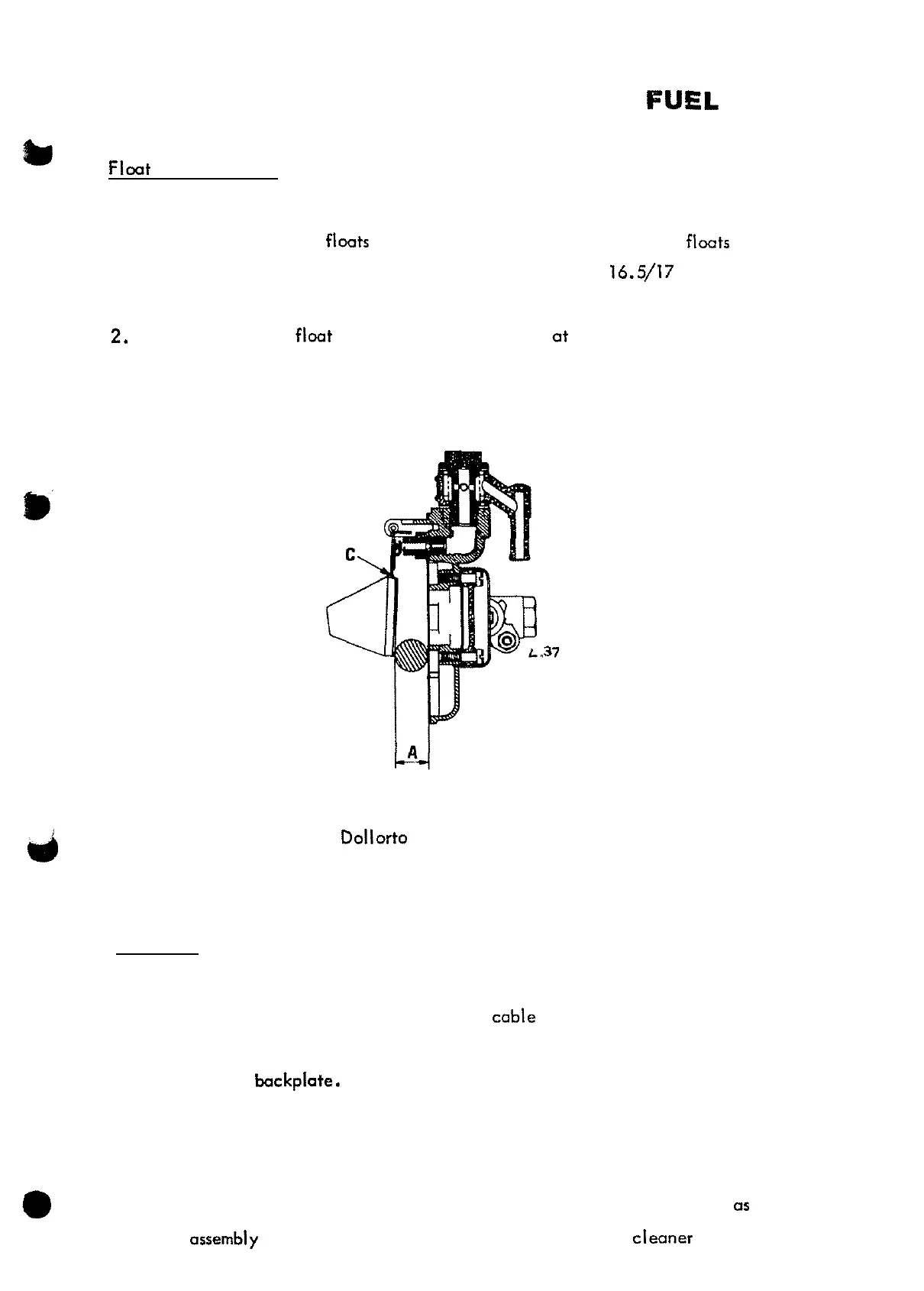

Fig.
l4
Dollorto float chamber level dimension
To Remove
1.
Remove the air cleaner cover (see
AIR
CLEANER 'To Remove').
2.
Disconnect the choke cable, throttle coble and return spring.
3.
Disconnect the breather pipe from the flame trap ot the rear of the
cleaner
backplate.
4.
Disconnect the fuel supply pipe to the carburetters.
5.
Disconnect the vacuum pipe from the carburetters.
6.
Release the nuts, plain woshers and thackeray washers or rubber springs
securing the carburetters to the manifold. Pull off the carburetters
as an
assembly
connected by the throttle linkage ond the air cleoner backplate.
