Page B55

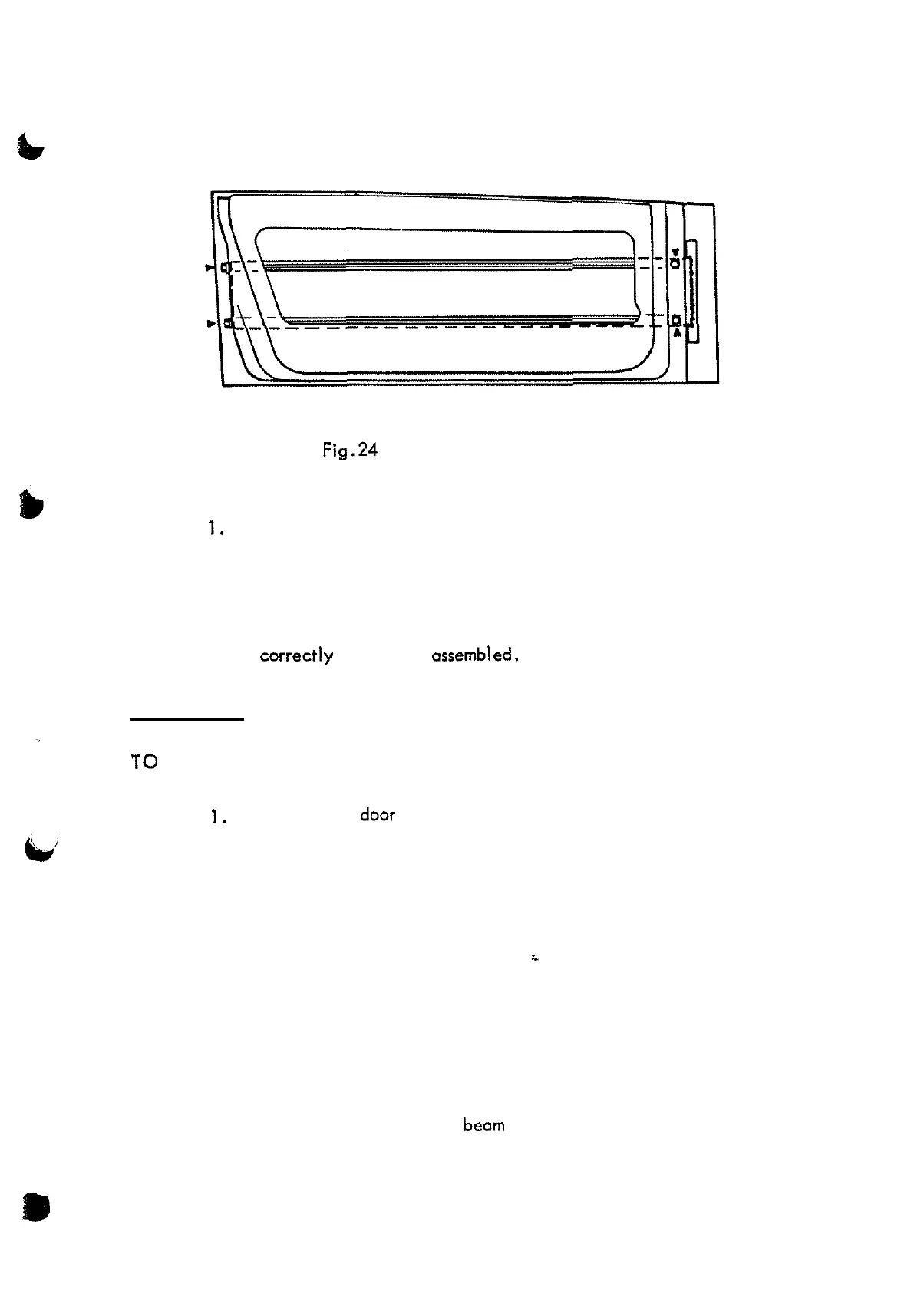

Fig.24 - Door Shell fixing bolts
TO REPLACE
1.
Reverse the removal procedure, fine adjustment of the position of the
window frame can be achieved using the movement in the door beam
slots.
2.
Ensure that the door, window motor and locks are functioning
correct1 when fully ossembled.
DOOR SHELL
TO REMOVE
1.
Remove the door window frame.
2.
Remove the two bolts at the front inside edge and the two bolts at
the rear edge of the door, securing the shell to the door beam.
3.
Slide off the door shell from the door beam.
TO REPLACE
-,
1. Reverse the removol procedure.
NOTE:
Assemble door assembly in the following order:
(a)
Fit the door beam to the car
(b)
Fit the door shell to the
beam
(c) Fit the window frame
ESPRIT
