FRONT SUSPENSION
Page C5
e
3.
Remove the bolts securing each end of the anti - roll bar and lift oway the
anti
- roll bar complete with the rubber mountings.
To Replace
1.
Check the bushes in the lower links for wear, replace if worn badly.
2.
Fit onti - roll bar to the lower links, pushing the bar through each bush
until it reaches the
back plate and securing with bolt and washen.

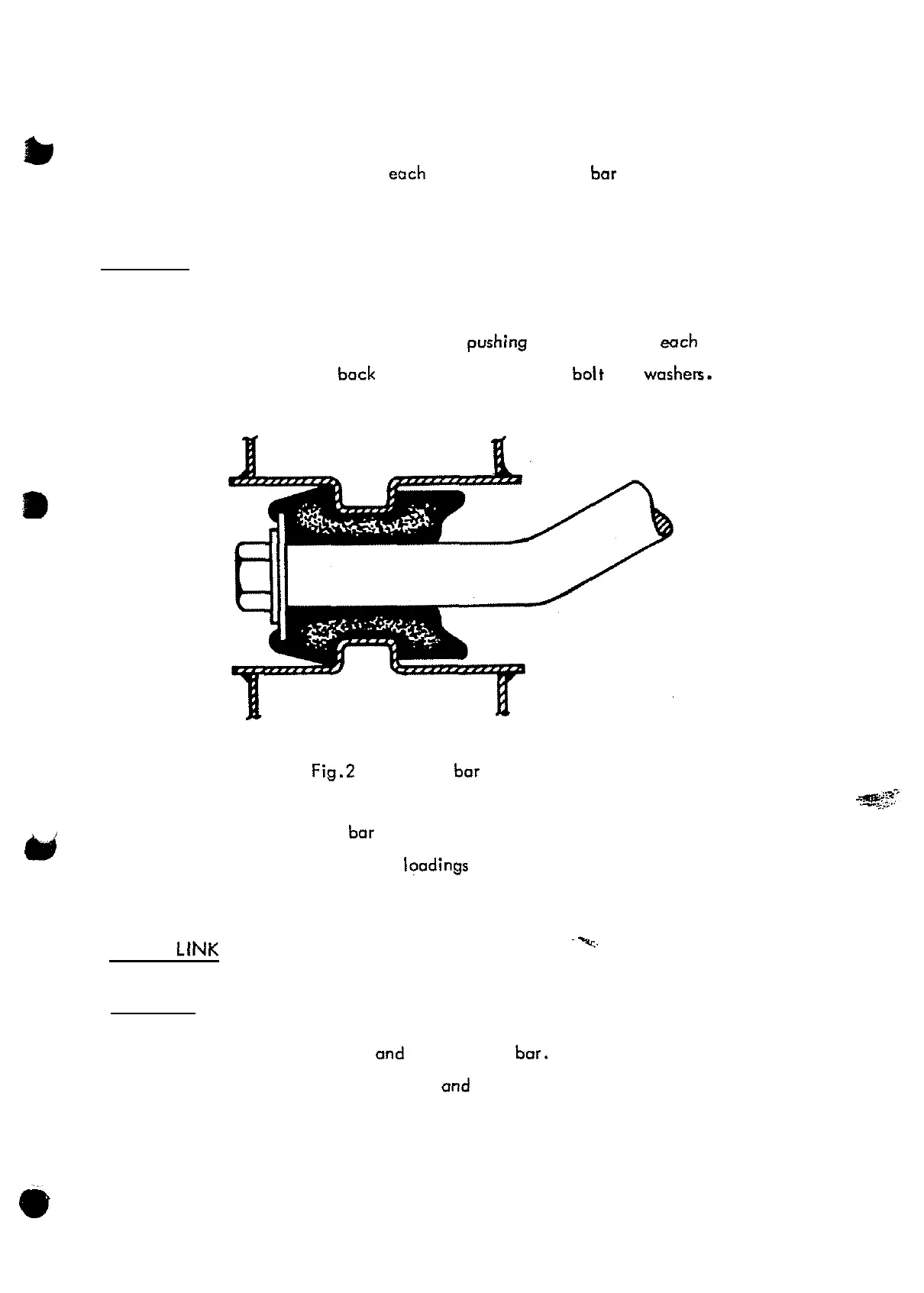

Fig.2 - Anti - roll bar mounting
Y
3.
Secure the anti - roll bar with its clamps to the chassis and tighten all bar
fixing screws to the torque
loadings specified in the TECHNICAL DATA.
4. Replace the rood wheels.
LOWER
LINK
To Remove
1.
Remove the road wheel and the anti - roll bar.
2.
Apply clamps to the coil spring and carefully compress the spring.
3.
Support the hub assembl
y
and remove the damper lower mounting bolt.
4.
Unscrew nut securing the lower link ball joint to the vertical link and lift
hub assemblies clear of the ball joint.
5.
Remove the bolt, washers and nut securing the inner end of the lower link
ESPRIT
