LSIS G100 User Manual

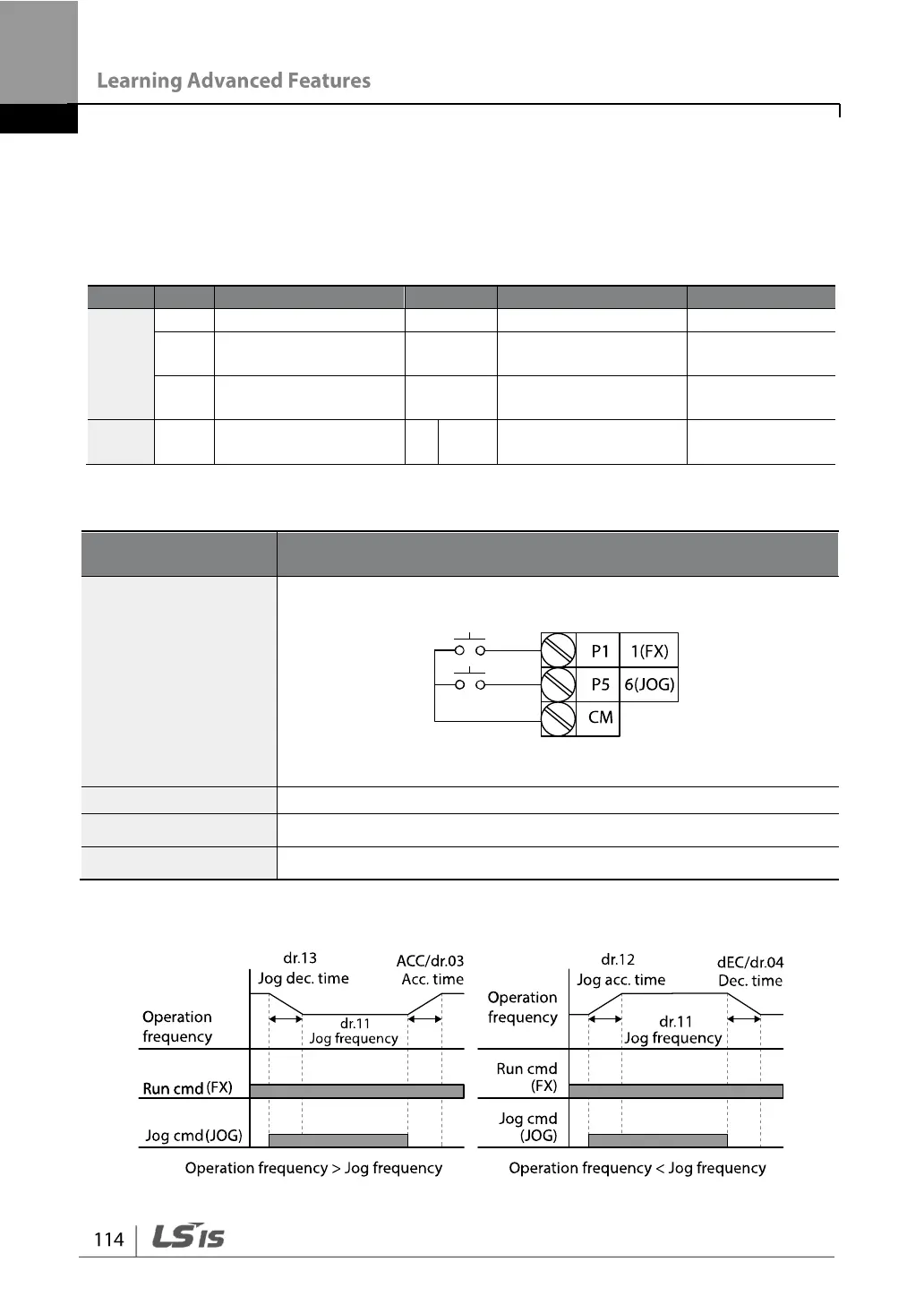

5.2.1 Jog Operation 1-Forward
The jog operation is available in either forward or reverse direction, using the keypad
or multi-function terminal inputs. The table below lists parameter setting for a forward
jog operation using the multi-function terminal inputs.
Group
Code
Name
Setting
Setting Range
Unit
dr
11
Jog frequency
10.00
0.50–Max Frequency
Hz
12
Jog run acceleration
time
20.00
0.00–600.00
sec
13
Jog run deceleration
time
30.00
0.00–600.00
sec
In
65–
69
Px terminal setting
options
6
JOG
0–52
-
Forward Jog Description Details
Code and
Features
Description
In.65–69 Px Define
Select the jog frequency from P1–P5 and then select 6. Jog from
In.65–69.
[Terminal settings for jog operation]
dr.11 JOG Frequency
Set the operation frequency.
dr.12 JOG Acc Time
Set the acceleration speed.
dr.13 JOG Dec Time
Set the deceleration speed.
If a signal is entered at the jog terminal while an FX operation command is on, the
operation frequency changes to the jog frequency and the jog operation begins.
