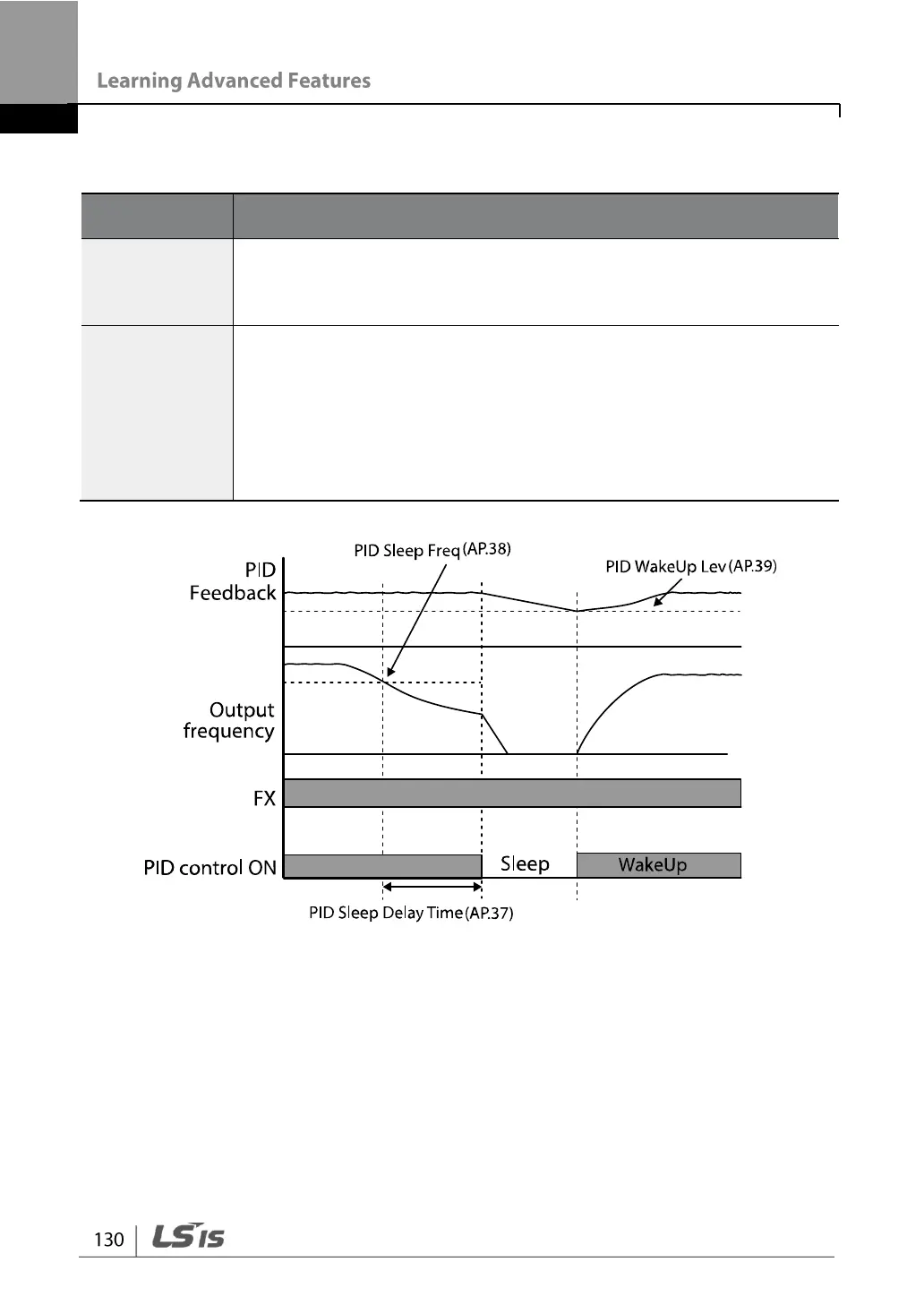

PID Operation Sleep Mode Setting Details

Code and

Features

Description

AP.37 PID Sleep

DT,

AP.38 PID Sleep

Freq

If an operation frequency lower than the value set at AP.38 is

maintained for the time set at AP.37, the operation stops and the PID

operation sleep mode starts.

AP.39 PID

WakeUp Lev,

AP.40 PID

WakeUp Mod

Starts the PID operation when in PID operation sleep mode. If AP.40 is

set to 0 (Below Level), the PID operation starts when the feedback

variable is less than the value set as the AP.39 parameter setting.

If AP.40 is set to 1 (Above Level), the operation starts when the

feedback variable is higher than the value set at AP.39. If AP.40 is set

to 2 (Beyond Level), the operation starts when the difference between

the reference value and the feedback variable is greater than the value

set at AP.39.

5.8.4 PID Switching (PID Openloop)

When one of the multi-function terminals (In.65–69) is set to 23 (PID Openloop) and is

turned on, the PID operation stops and is switched to general operation. When the

terminal turns off, the PID operation starts again.
