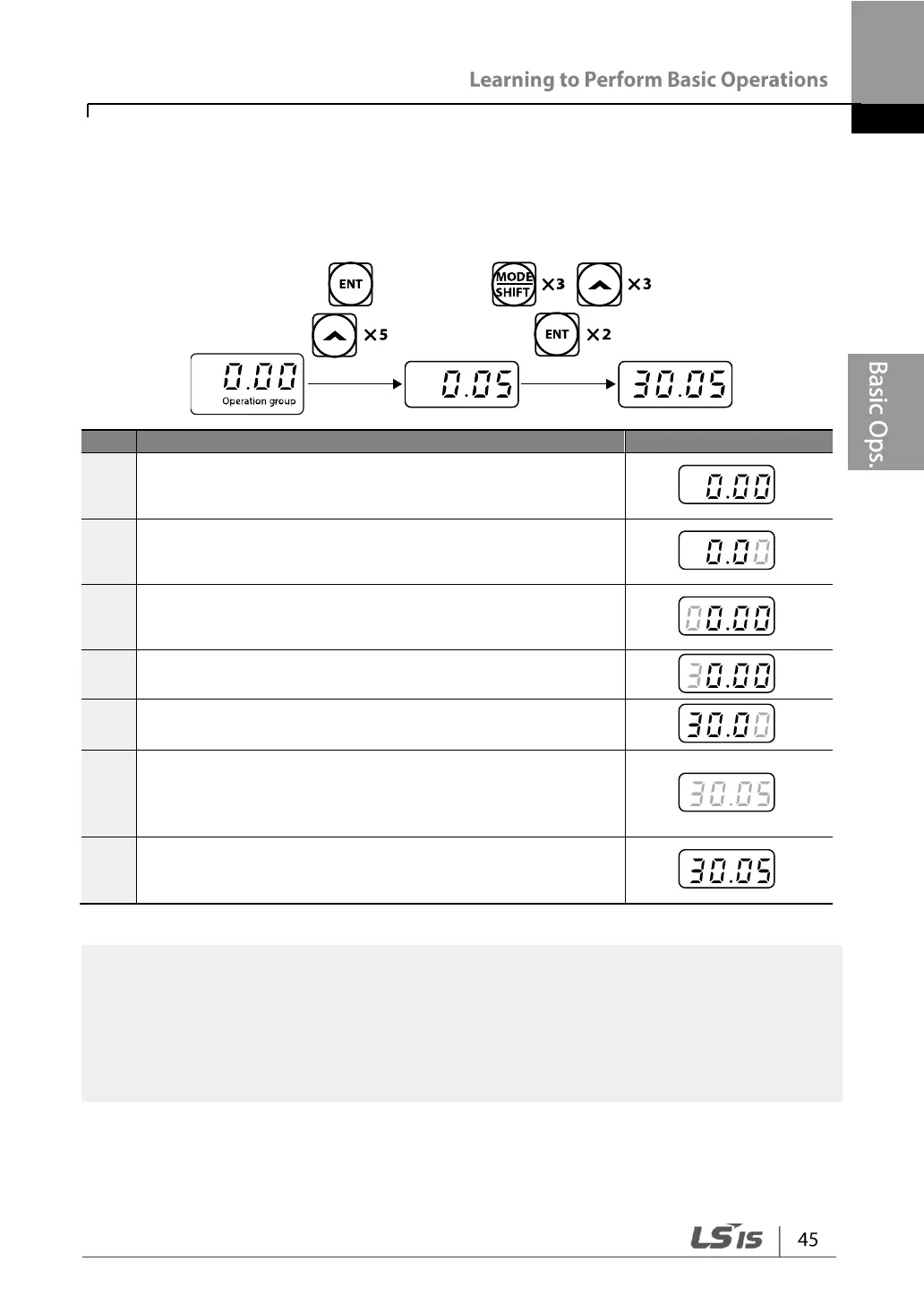

3.3.2 Frequency Reference Configuration
The following is an example to demonstrate configuring a frequency reference of
30.05 Hz from the first code in the Operation group.
Ensure that the first code of the Operation group is
selected, and code 0.00 (Command Frequency) is
displayed.
The default value "0.00" will be displayed and "0" in the
second decimal place will flash.
Press the [MODE] key 3 times to move to the tens' place
value.
"0" in the tens' place will flash.
To make the target value "30.05", press the [▲] key to
change the tens' place value to "3."
Press the [MODE] key 2 times.
The "0" in the second decimal place will flash.
To make the target value "30.05", press the [▲] key to
change the second decimal place value to "5", and then
press the [ENT] key.
The selected value will flash on the display.
Press the [ENT] key again to save the changes.
Flashing stops. The frequency reference has been
configured to 30.05 Hz.
• A flashing number on the display indicates that the keypad is waiting for an input from
the user. Changes will be saved when the [ENT] key is pressed while the number is
flashing. The setting change will be canceled if you press any other key.
• The G100 inverter keypad display can display up to 4 digits. However, 5-digit figures
can be used and are accessed by pressing the [MODE] key, to allow keypad input.
