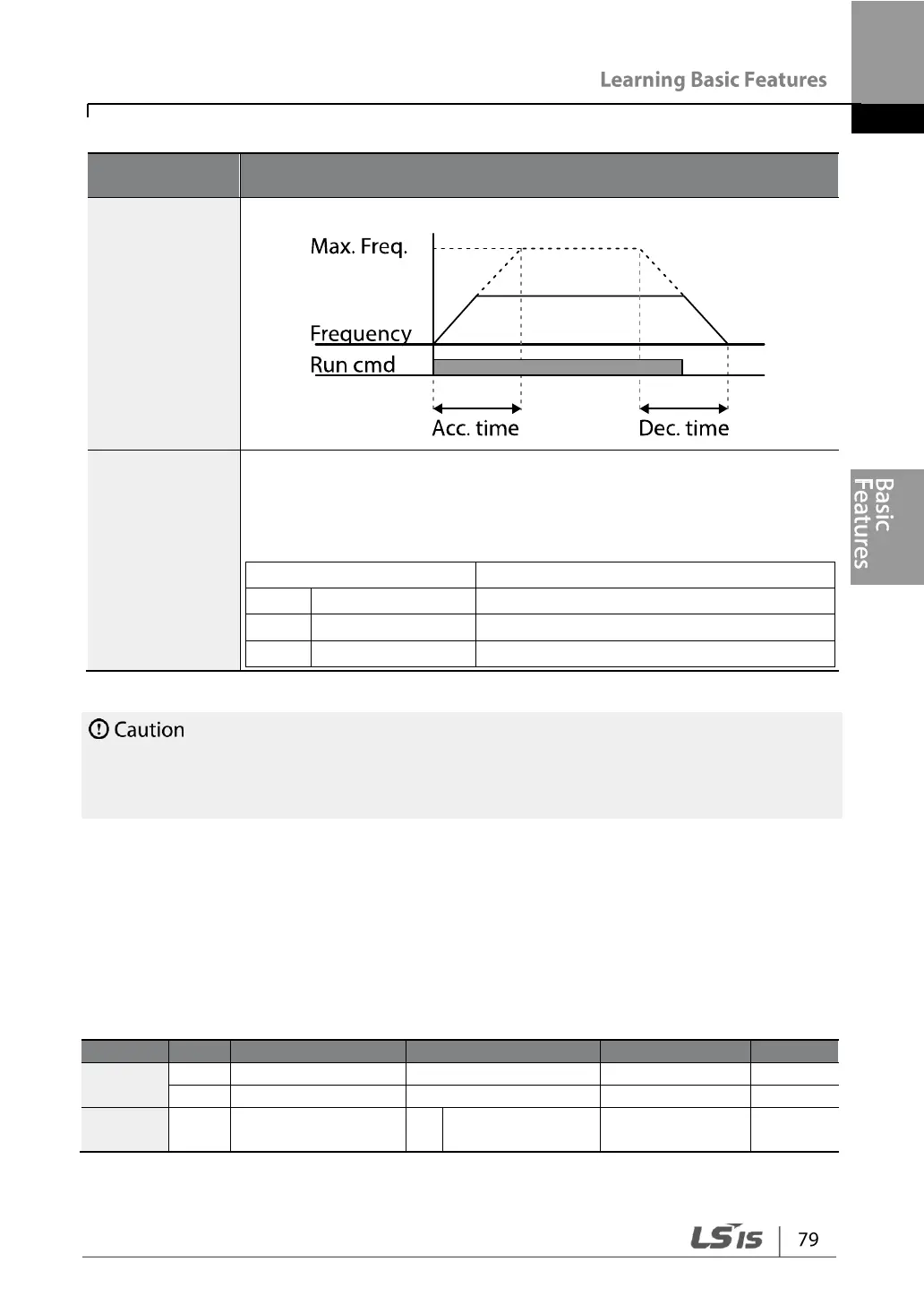

at 30 Hz, the time required to reach 30 Hz therefore is 2.5 seconds.
bA.09 Time
scale
Use the time scale for all time-related values. It is particularly useful
when a more accurate Acc/Dec times are required because of load
characteristics, or when the maximum time range needs to be
extended.
Configuration
Function
0
0.01sec
Sets 0.01 second as the minimum unit.
1
0.1sec
Sets 0.1 second as the minimum unit.
2
1sec
Sets 1 second as the minimum unit.
Note that the range of maximum time values may change automatically when the units are
changed. If for example, the acceleration time is set at 6000 seconds, a time scale change
from 1 second to 0.01 second will result in a modified acceleration time of 60.00 seconds.
4.8.2 Acc/Dec Time Based on Operation Frequency
Acc/Dec times can be set based on the time required to reach the next step frequency
from the existing operation frequency. To set the Acc/Dec time values based on the
existing operation frequency, set bA. 08 (acc/dec reference) in the Basic group to 1
(Delta Freq).
Group
Code
Name
Setting
Setting Range
Unit
Operatio
n
ACC
Acceleration time
5.0
0.0600.0
sec
dEC
Deceleration time
10.0
0.0600.0
sec
bA
08
Acc/Dec reference
frequency
1
Delta Freq
01
-
