3.1.2 Operation Keys

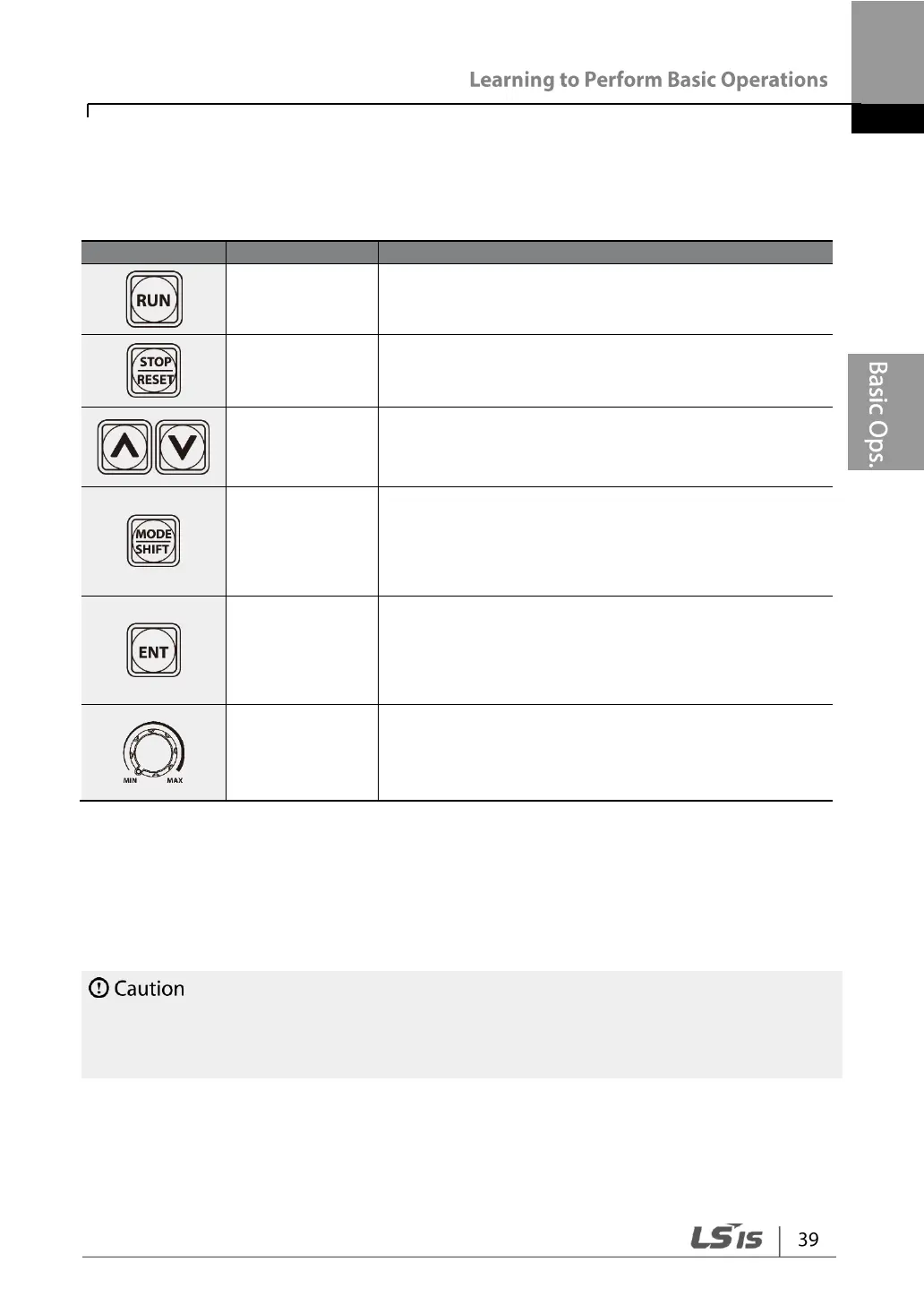

The following table lists the names and functions of the keypad’s operation keys.
Key
Name
Function
[RUN] key
Used to run the inverter.
[STOP/RESET]
key
STOP: Stops the inverter.
RESET: Resets the inverter if a fault or failure
occurs.
[▲] key, [▼] key
Switches between codes, or increases or decreases
parameter values.
[MODE/SHIFT]
key
Moves between groups or moves to the digit on the
left when setting the parameter. Press the
MODE/SHIFT key once again on the maximum
number of digits to move to the minimum number of
digits.
[ENTER] key
Switches from the selected state of parameter to the
input state.
Edits parameter and apply change.
Accesses the operation information screen during
failure on the failure screen.
[Volume]
Used to set the operation frequency.
* Operates as ESC key if two keys out of [MODE/SHIFT] key, [▲] key and [▼] key are
entered at the same time.
- Press ESC in the group navigation mode to go to the initial screen (the frequency
display screen).
- Press ESC in the mode to change parameter to go to group navigation mode
without saving.
Install a separate emergency stop switch in the circuit. The [STOP/RESET] key on the
keypad works only when the inverter has been configured to accept an input from the
keypad.
