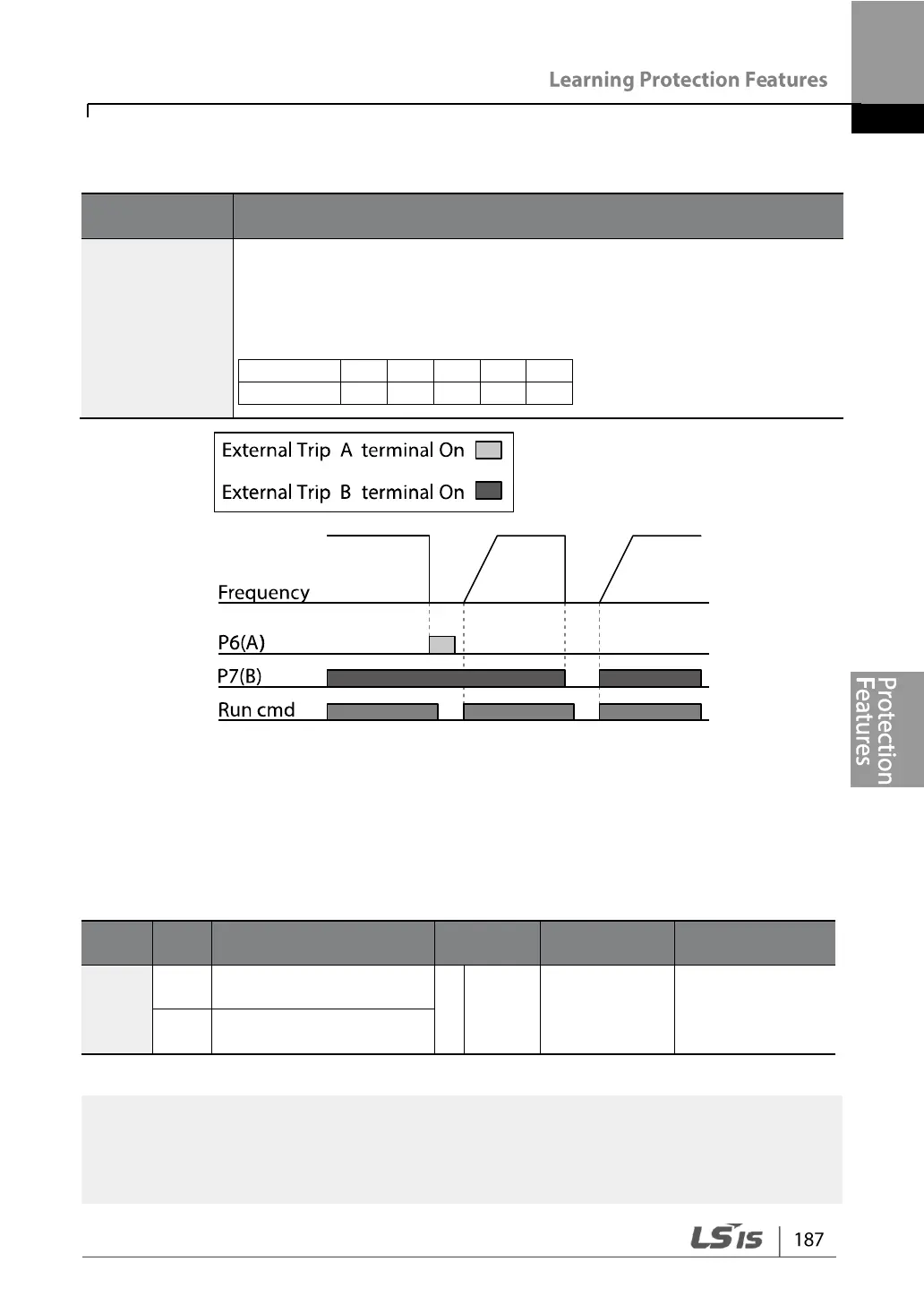

External Trip Signal Setting Details
Code and
Features
Description
In.87 DI NC/NO
Sel
Selects the type of input contact. If the mark of the switch is at the
bottom (0), it operates as an A contact (Normally Open). If the mark is
at the top (1), it operates as a B contact (Normally Closed). The
corresponding terminals for each bit are as follows:
Bit
5
4
3
2
1
Terminals
P5
P4
P3
P2
P1
6.2.3 Inverter Overload Protection
When the inverter input current exceeds the rated current, a protective function is
activated to prevent damages to the inverter based on inverse proportional
characteristics.
Group
Code
Name
Setting
Setting
Range
Unit
OU
31
Multi-function relay 1
item
6
IOL
-
-
33
Multi-function relay 2
item
Note
A warning signal output can be provided in advance by the multi-function output terminal
before the inverter overload protection function (IOLT) operates. When the overcurrent
time reaches 60 of the allowed overcurrent (150%, 1 min), a warning signal output is
