Note that actual Acc/Dec times become greater than user defined Acc/Dec times when
S-curve Acc/Dec patterns are in use.

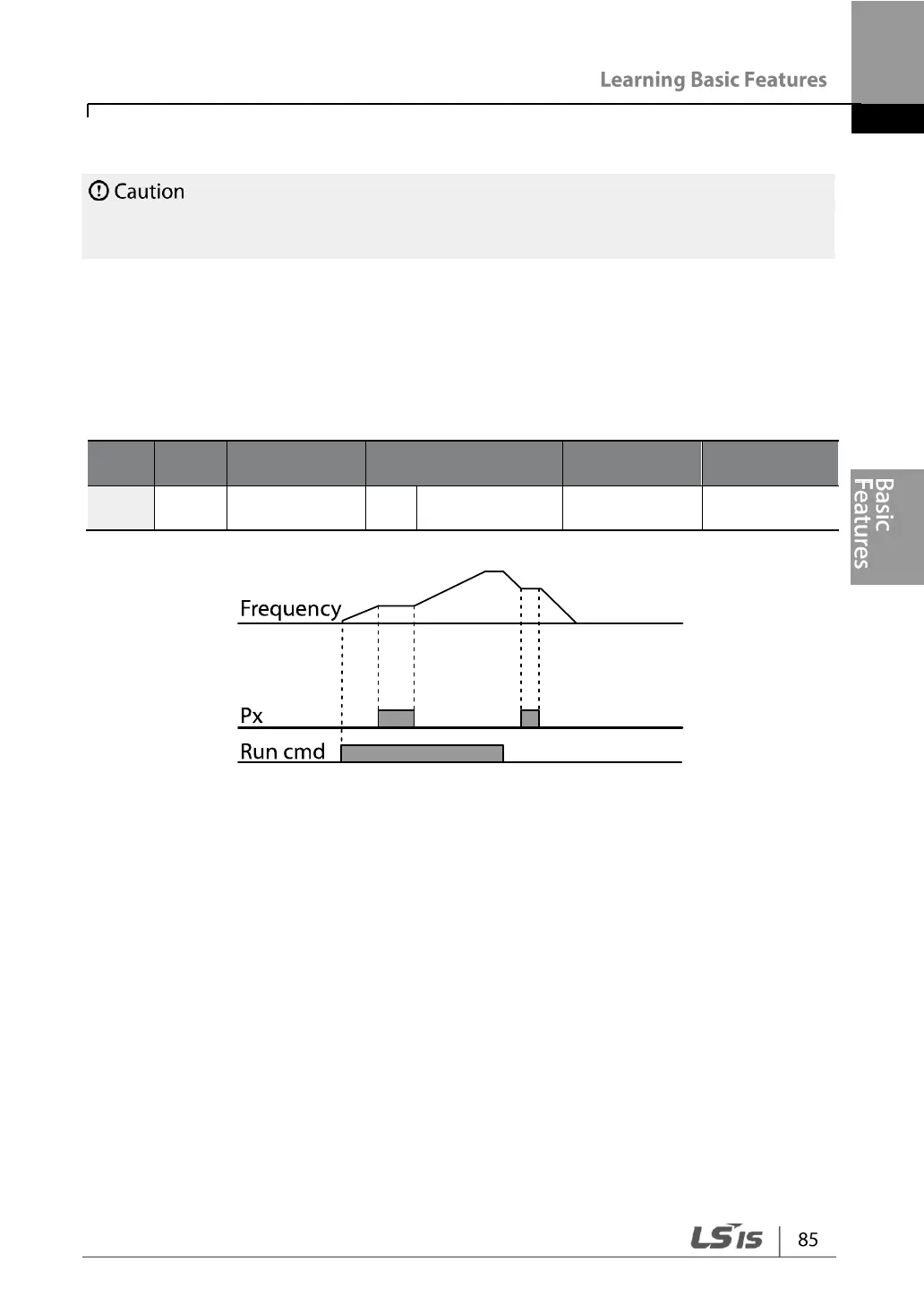

4.10 Stopping the Acc/Dec Operation
Configure the multi-function input terminals to stop acceleration or deceleration and
operate the inverter at a fixed frequency.
Grou
p
Code
Name
Setting
Setting Range
Unit
In
6569
Px terminal
setting options
25
XCEL Stop
0–52
-
4.11 V/F Control
Configure the inverter’s output voltages, gradient levels and output patterns to achieve
a target output frequency with V/F control. The amount of torque boost used during
low frequency operations can also be adjusted.
4.11.1 Linear V/F Pattern Operation
A linear V/F pattern configures the inverter to increase or decrease the output voltage
at a fixed rate for different operation frequencies based on V/F characteristics. Used
for loads that require constant torque regardless of the frequency.
