LSIS G100 User Manual

Multi-function Relay On/Off Control Setting Details
Code and Features
Description

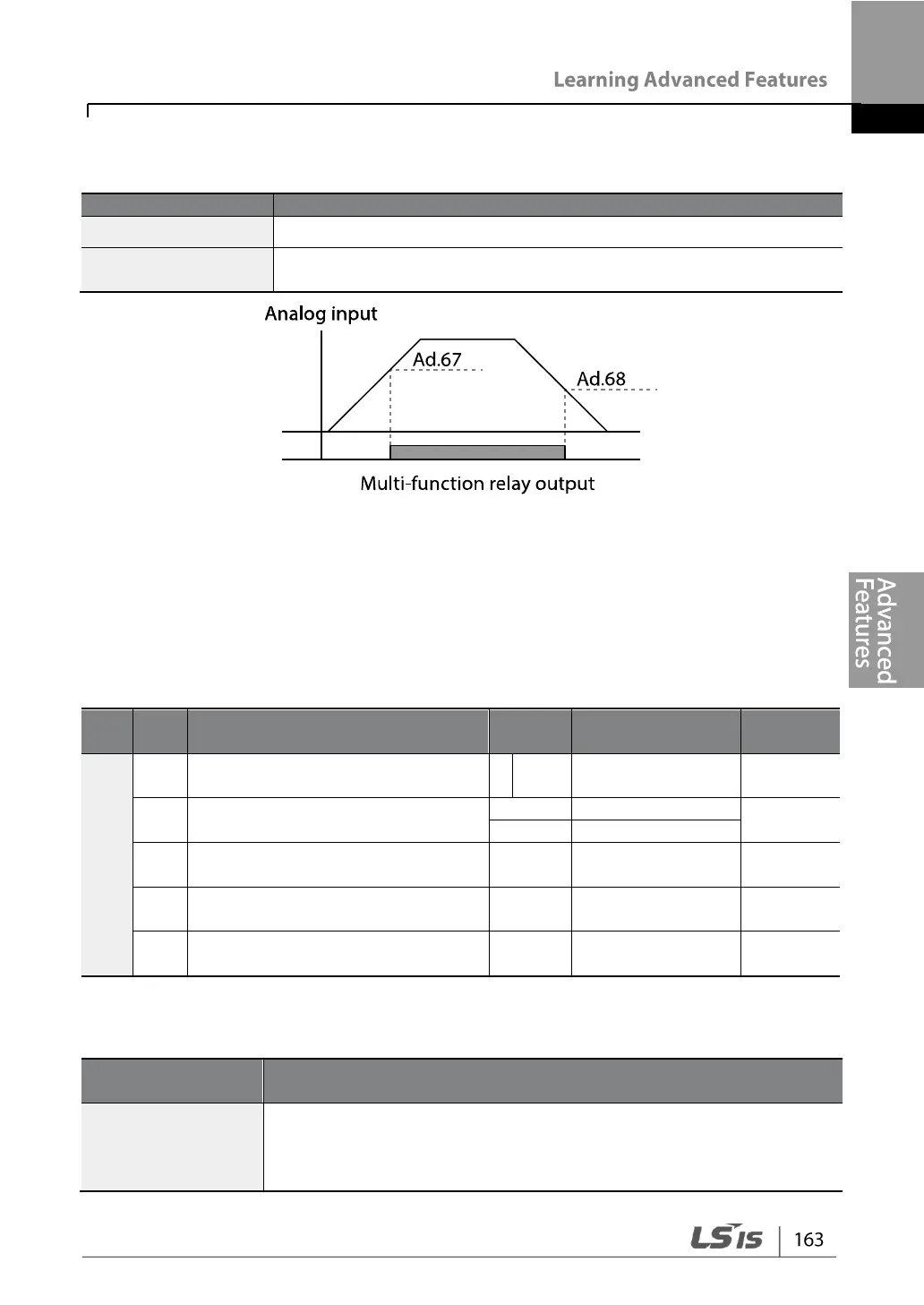

Ad.66 On/Off Ctrl Src
Select analog input On/Off control.
Ad.67 On-C Level,
Ad.68 Off-C Level
Set On/Off level at the output terminal.
5.27 Press Regeneration Prevention
Press regeneration prevention is used during press operations to prevent braking
during the regeneration process. If motor regeneration occurs during a press
operation, motor operation speed automatically goes up to avoid the regeneration
zone.
Gro
up
Cod
e
Name
Setting
Setting Range
Unit
Ad
74
Selection of regeneration evasion
function for press
0
No
0–1
-
75
Voltage level of regeneration
evasion motion for press
350 V
200 V 300–400 V
V
700 V
400 V 600–800 V
76
Compensation frequency limit of
regeneration evasion for press
1.00
(Hz)
0.00–10.00 Hz
Hz
77
Regeneration evasion for press P
gain
50.0 (%)
0–100%
%
78
Regeneration evasion for press I
gain
500
(ms)
20–30000 ms
ms
Press Regeneration Prevention Setting Details
Code and
Features
Description
Ad.74 RegenAvd
Sel
Frequent regeneration voltage from a press load during constant
speed motor operation may force excessive work on the brake unit
which may damage or shorten the brake life. To prevent this
situation, select Ad.74 (RegenAvd Sel) to control DC link voltage
