delay time (BR Rls Dly).

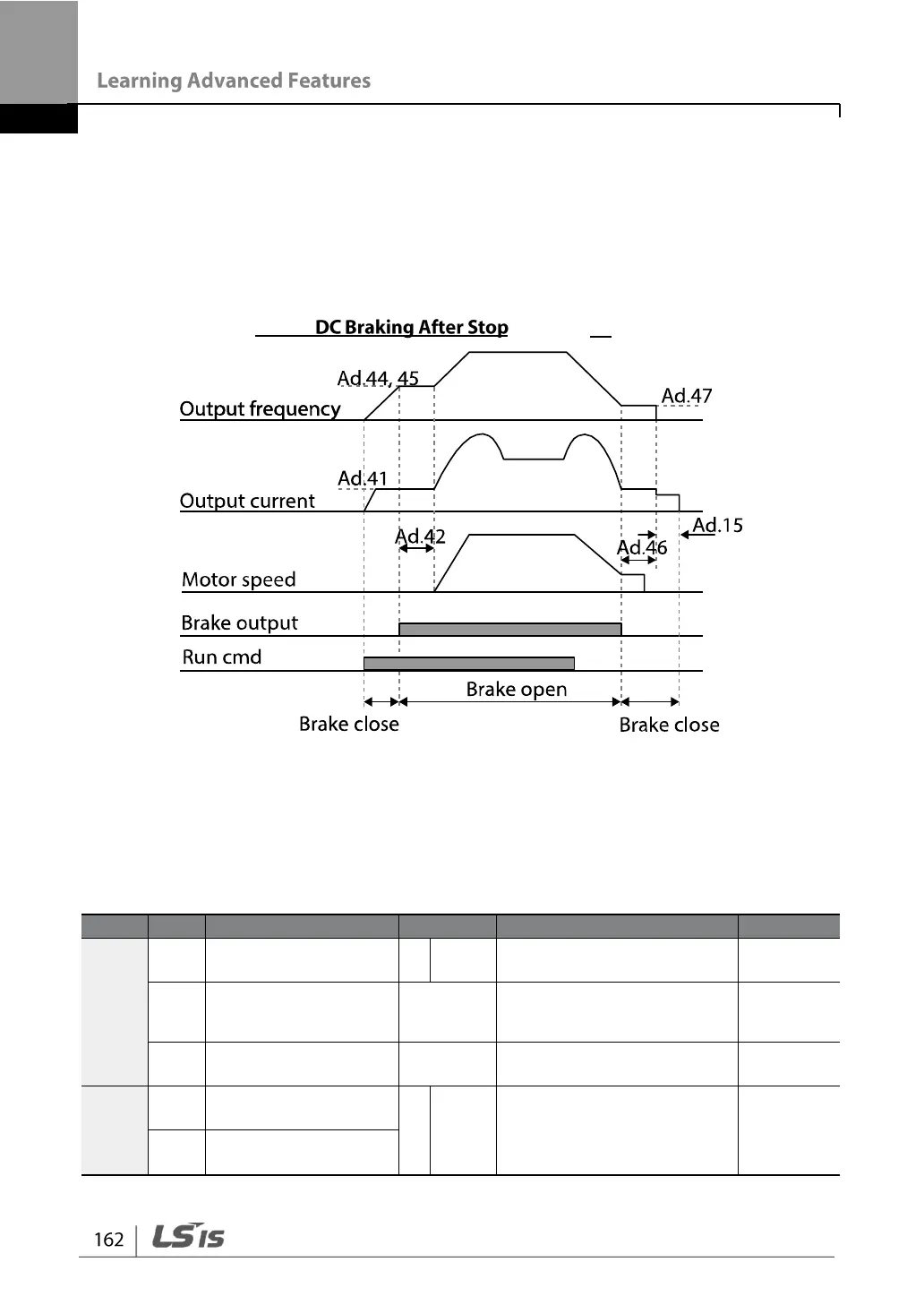

• Brake engage sequence: If a stop command is sent during operation, the motor
decelerates. Once the output frequency reaches brake engage frequency (BR Eng
Fr), the motor stops deceleration and sends out a brake engage signal to a preset
output terminal. Frequency is maintained for the brake engage delay time (BR Eng
Dly) and will become 0 afterwards. If DC braking time (Ad.15) and DC braking
resistance (Ad.16) are set, inverter output is blocked after DC braking. For DC
braking, refer to 4.15.2 on page 95.
5.26 Multi-Function Relay On/Off Control
Set reference values (on/off level) for analog input and control output relay or multi-
function output terminal on/off status accordingly.
Group
Code
Name
Setting
Setting Range
Unit
Ad
66
Output terminal on/off
control mode
1
V1
-
-
67
Output contact On
level
90.00
Output contact off level–
100.00%
%
68
Output contact Off
level
10.00
0.00–Output terminal on
level
%
OU
31
Multi-function relay 1
item
34
On/Off
-
-
33
Multi-function relay 2
item
