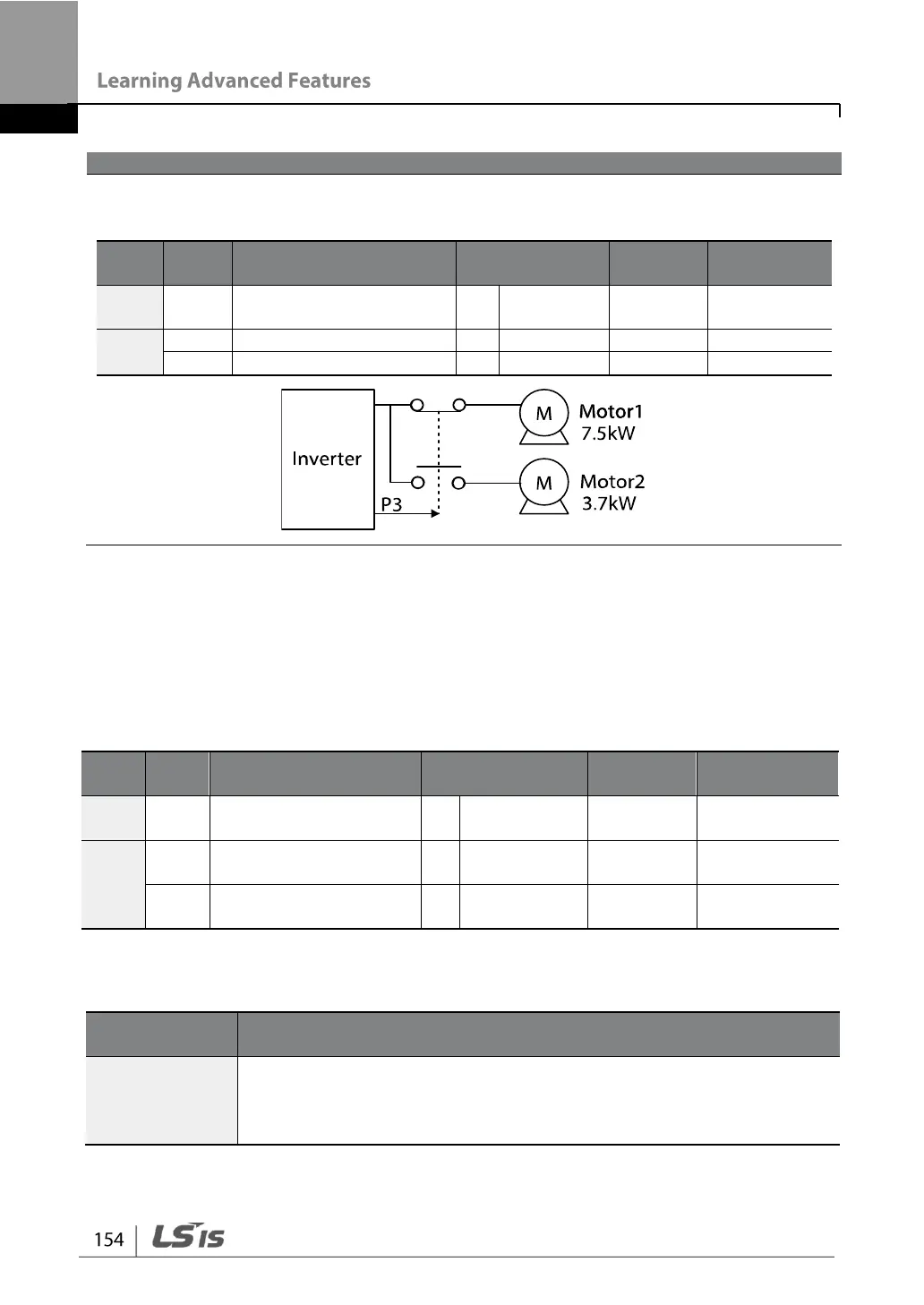

LSIS G100 User Manual

Example - 2nd Motor Operation
Use the 2nd motor operation when switching operation between a 7.5 kW motor and a
secondary 3.7 kW motor connected to terminal P3. Refer to the following settings.
Group
Code
Name
Setting
Setting
Range
Unit
In
67
P3 terminal function
setting
26
2nd Motor
-
-
M2
06
Motor capacity
-
3.7 kW
-
-
08
Control mode
0
V/F
-
-
5.17 Commercial Power Source Transition
Supply power transition is used to switch the power source for the motor connected to
the inverter from the inverter output power to the main supply power source
(commercial power source), or vice versa.
Grou
p
Code
Name
Setting
Setting
Range
Unit
In
65–69
Px terminal setting
options
16
Exchange
0–52
-
OU
31
Multi-function relay 1
item
17
Inverter Line
-
-
33
Multi-function relay 2
item
18
Comm Line
-
-
Supply Power Transition Setting Details
Code and
Features
Description
In.65–69 Px
Define
When the motor power source changes from inverter output to main
supply power, select a terminal to use and set the code value to 16
(Exchange). Power will be switched when the selected terminal is on.
To reverse the transition, switch off the terminal.
