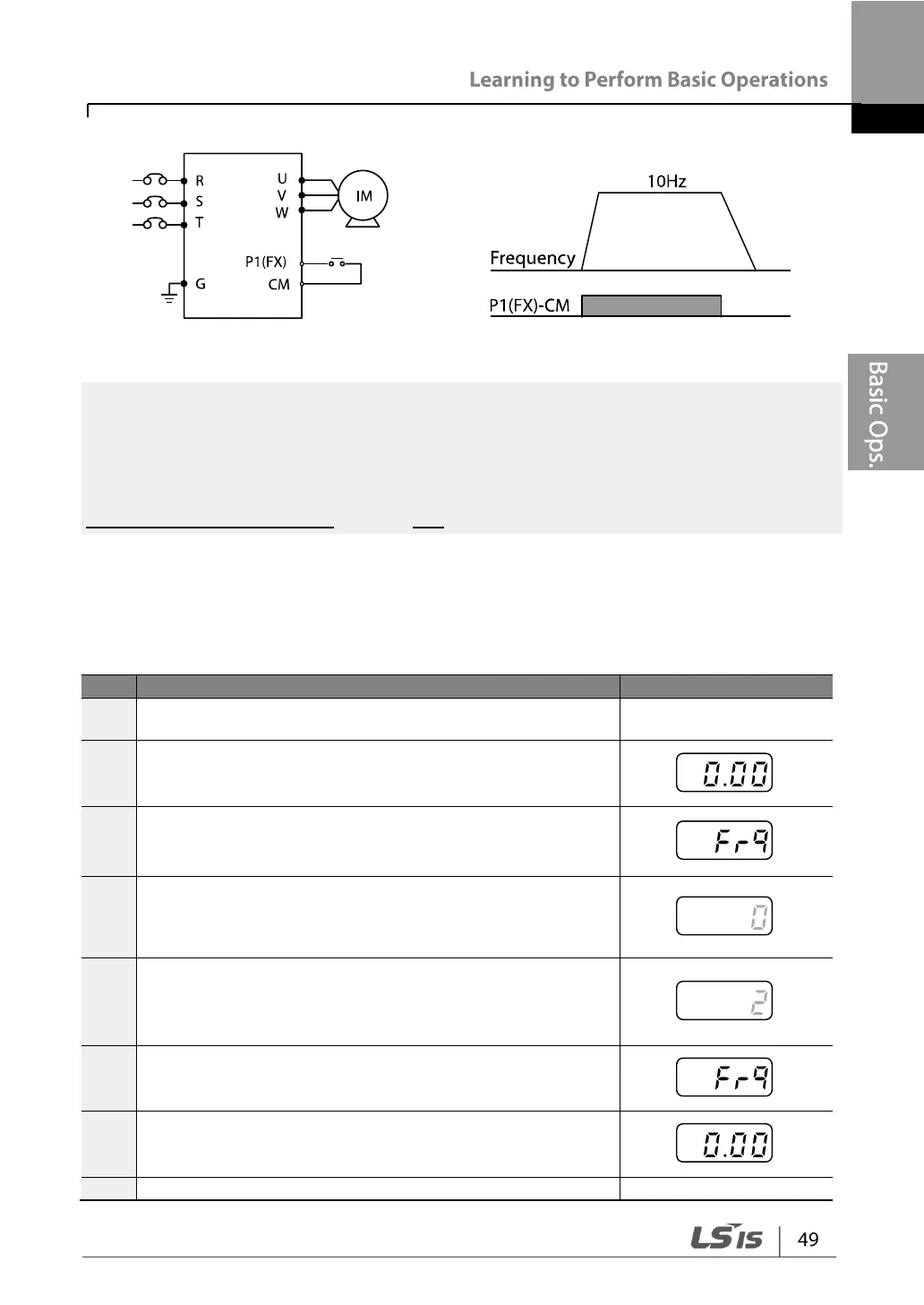

[Wiring Diagram] [Operation Pattern]
The instructions in the table are based on the factory default parameter settings. The
inverter may not work correctly if the default parameter settings are changed after the
inverter is purchased. In such cases, initialize all parameters to reset the values to the
factory default parameter settings before following the instructions in the table (refer to
5.21 Parameter initialization on page 157).
3.3.6 Frequency Setting (Potentiometer) and Operation
(Terminal Input)
Ensure that the first code of the Operation group is
selected, and code 0.00 (Command Frequency) is
displayed.
Press the [▲] key 4 times.
Move to the Frq (Frequency reference source) code.
The Frq code in the Operation group is currently set to 0
(keypad).
Press the [▲] key to change the parameter value to 2
(Fx/Rx 1-Set frequency input to potentiometer), and then
press the [ENT] key.
The parameter value will flash.
Press the [ENT] key once again.
The Frq code will be displayed again. The frequency
input has been configured for the potentiometer.
Press the [▼] key 4 times.
Move to the first code of the Operation group (0.00).
From here frequency setting values can be monitored.
Adjust the potentiometer to increase or decrease the
