3.1.1 About the Display
The following table lists display part names and their functions.
No.
Name
Function
󰪻
7-Segment Display
Displays current operational status and parameter
information.
󰪼
SET Indicator
LED flashes during parameter configuration and when
the ESC key operates as the multi-function key.
󰪽
RUN Indicator
LED turns on (steady) during an operation, and
flashes during acceleration or deceleration.
󰪾
FWD Indicator
LED turns on (steady) during forward operation.
󰪿
REV Indicator
LED turns on (steady) during reverse operation.

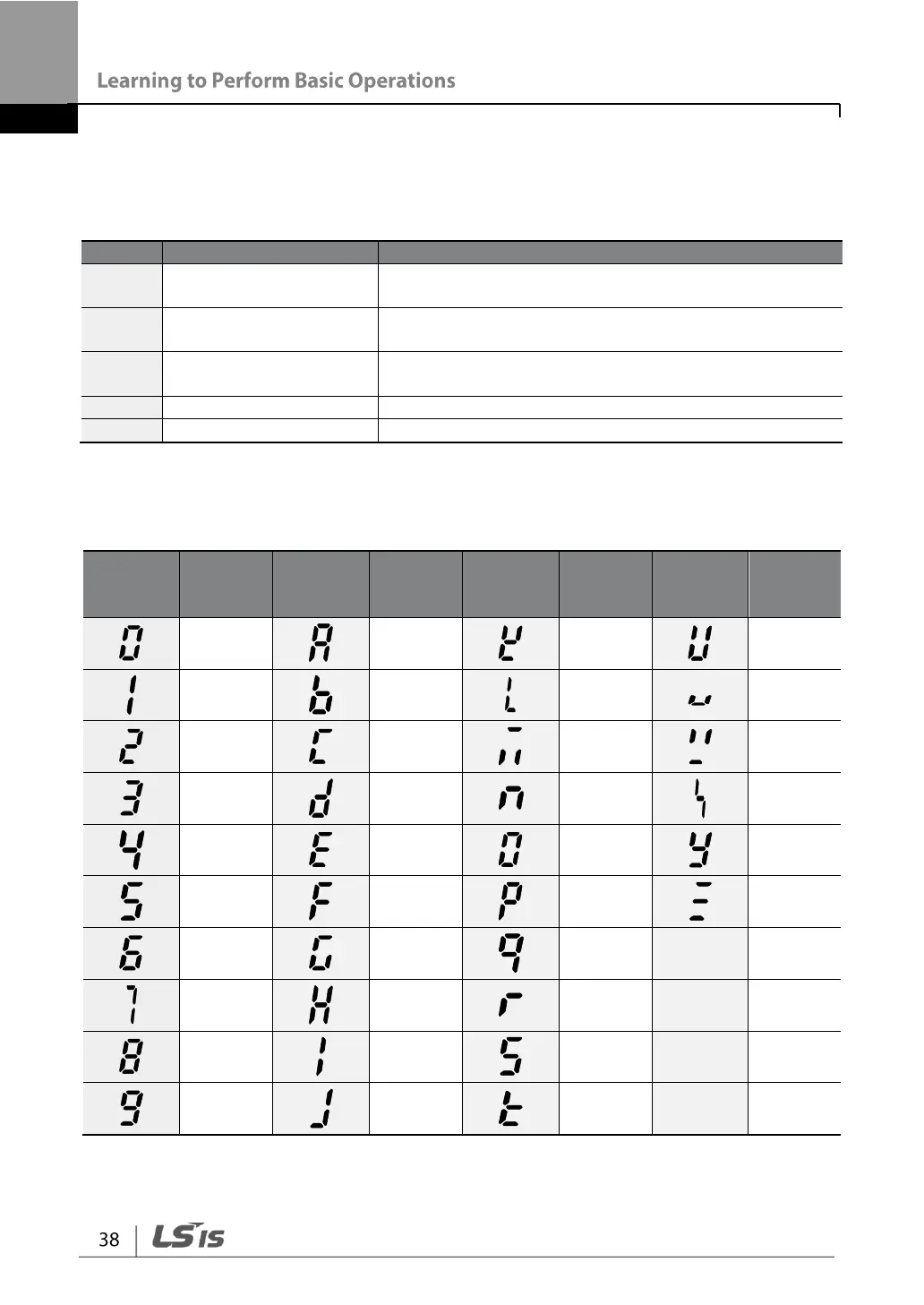

The table below lists the way that the keypad displays characters (letters and
numbers).
Display
Number/
characte
r
Display
Number/
characte
r
Display
Number/
characte
r
Display
Number/
characte
r
0
A
K
U
1
B
L
V
2
C
M
W
3
D
N
X
4
E
O
Y
5
F
P
Z
6
G
Q
7
H
R
8
I
S
9
J
T
