LSIS G100 User Manual

Code and
Features
Description

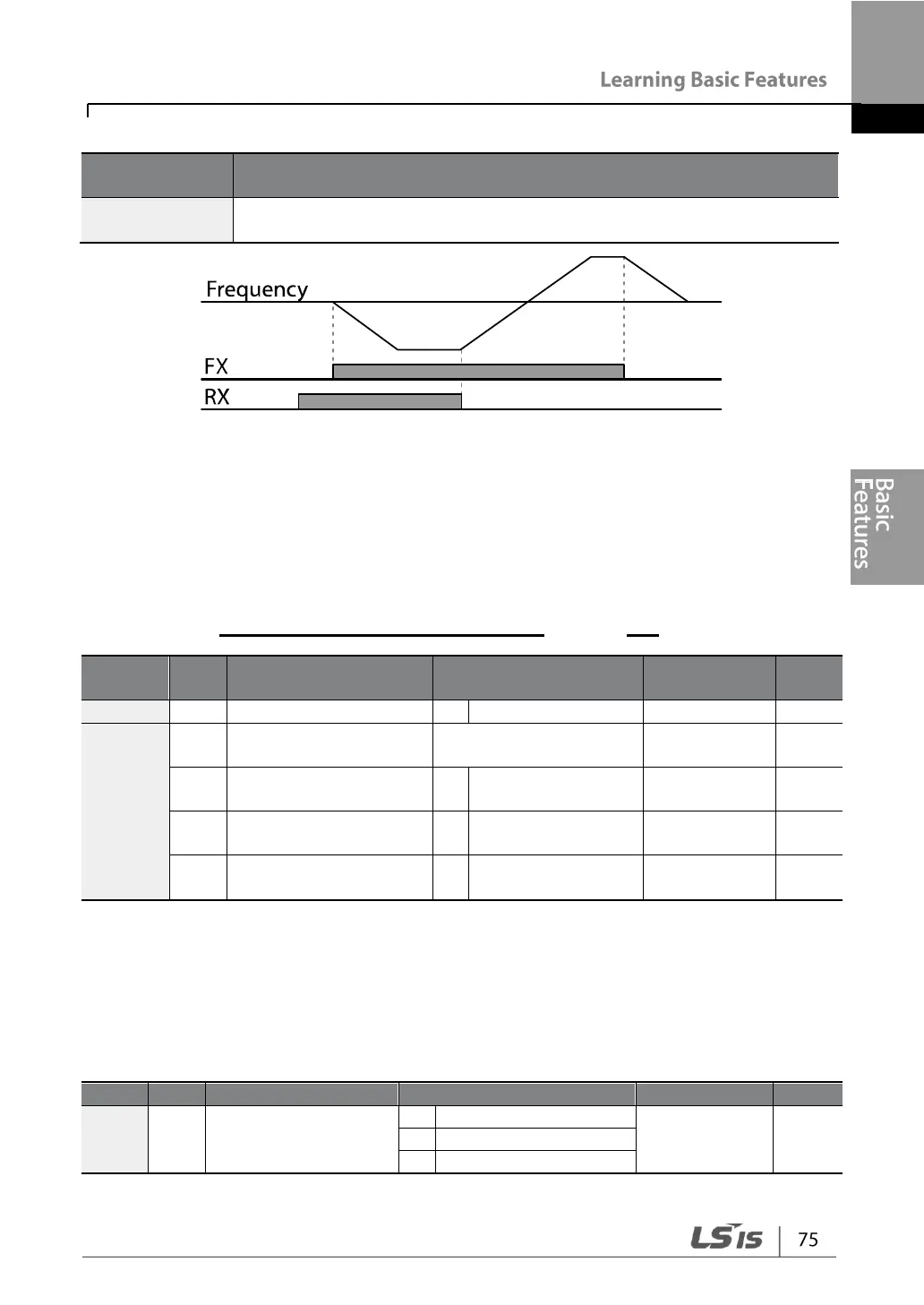

In.65–69 Px
Define
Assign a terminal for run command (Fx).
Assign a terminal for changing rotation direction (Rx).
4.4.4 RS-485 Communication as a Command Input Device
Internal RS-485 communication can be selected as a command input device by
setting the drv (command source) code in the Operation group to 3 (Int 485). Control
the inverter with upper-level controllers, such as PCs or PLCs, via RS-485
communication by using RS-485 signal input terminals (S+/S-) of the control terminal
block. Refer to 7 RS-485 Communication Features on page 208 for more details.
Group
Code
Name
Setting
Setting
Range
Unit
Operation
drv
Command Source
3
Int 485
0–4
-
CM
01
Built-in communication
inverter ID
1
1–250
-
02
Built-in communication
protocol
0
ModBus RTU
0–2
-
03
Built-in communication
speed
3
9600 bps
0–7
-
04
Built-in communication
frame setting
0
D8/PN/S1
0–3
-
4.5 Forward or Reverse Run Prevention
The rotation direction of motors can be configured to prevent motors to only run in one
direction.
Group
Code
Name
Setting
Setting Range
Unit
Ad
09
Run prevention
options
0
None
0–2
-
1
Forward Prev
2
Reverse Prev
