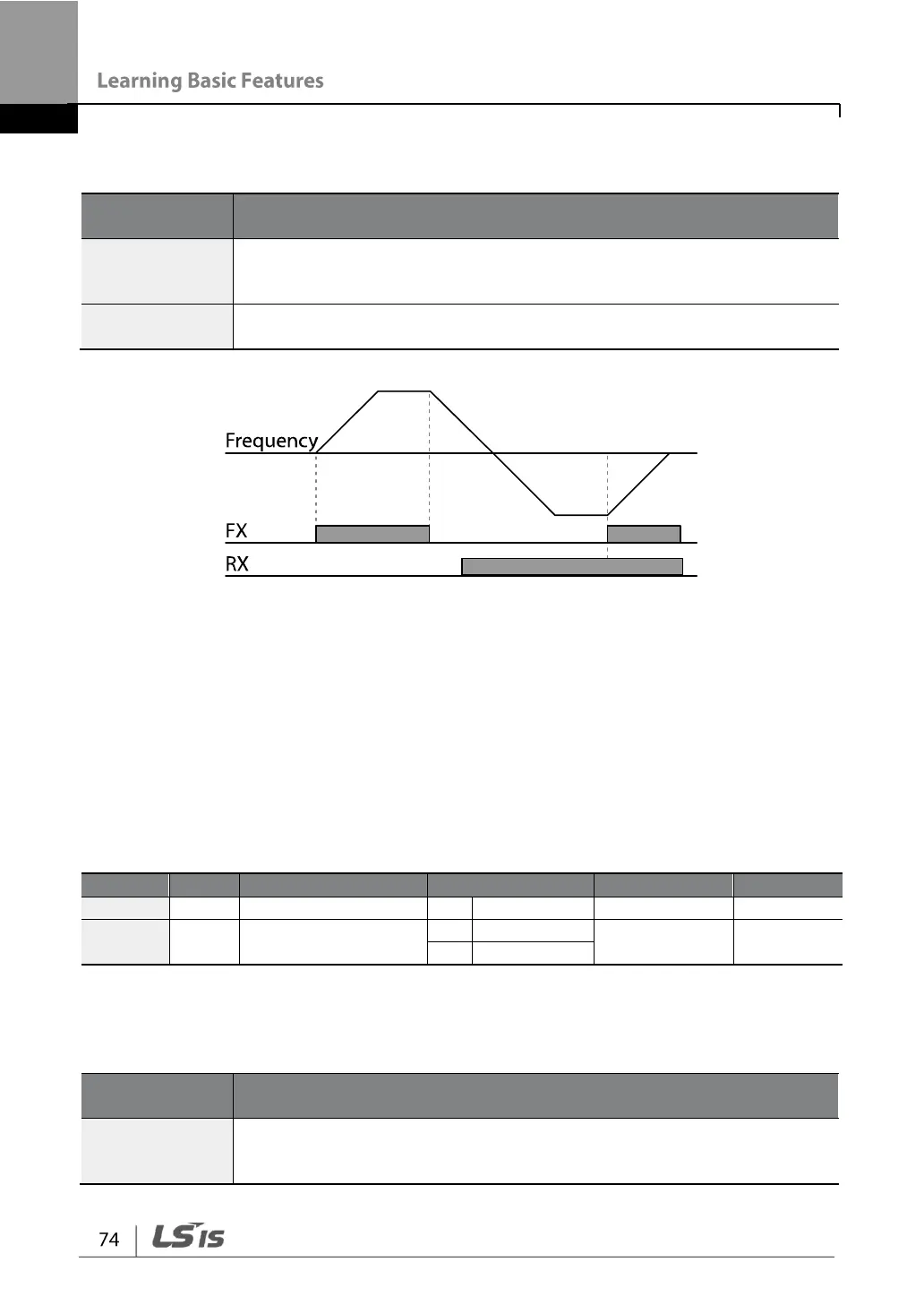

Fwd/Rev Command by Multi-function Terminal – Setting Details
Code and
Features
Description
Operation group
drv– Cmd
Source
Set to 1 (Fx/Rx-1).
In.65–69 Px
Define
Assign a terminal for forward (Fx) operation.
Assign a terminal for reverse (Rx) operation.
4.4.3 Terminal Block as a Command Input Device (Run and
Rotation Direction Commands)
Set the drv (command source) code in the Operation group to 2 (Fx/Rx-2). Select
terminals for the operation and rotation operations from P1–P5 multi-function input
terminals. Then select 1 (Fx) and 2 (Rx) respectively for 65–69 (Px terminal setting
options) codes of the In group. This enables both the Fx terminal to be used as the
operation command terminal and the Rx terminal as the terminal to select the
rotational direction (On: Rx, Off: Fx).
Group
Code
Name
Setting
Setting Range
Unit
Operation
drv
Command Source
2
Fx/Rx-2
0–4
-
In
65–69
Px terminal setting
options
1
Fx
0–52
-
2
Rx
Run Command and Fwd/Rev Change Command Using Multi-function Terminal –
Setting Details
Code and
Features
Description
Operation group
drv– Cmd
Source
Set to 2 (Fx/Rx-2).
