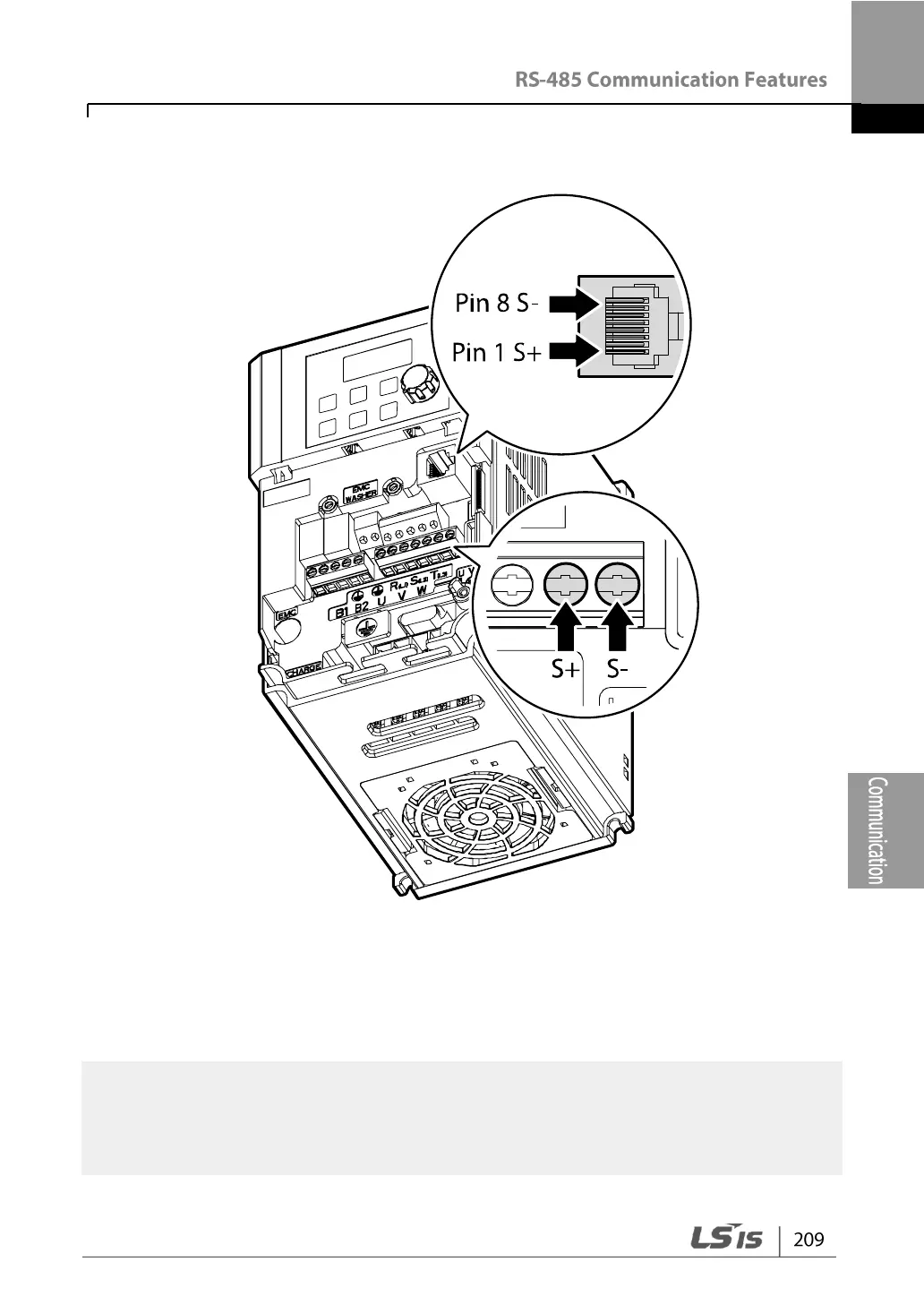

Connect the communication lines by referring to the illustration below.
Use 2Pair STP (Shielded twisted Pair) cable (using only no.1 pin S+, no.8 pin S-/ no.1
and no.8 pins are twisted types) and a RJ45 STP plug. Use a RJ45 coupler for
connection between products and cable extension (Y type LAN coupler where STP
can be mounted). (Use LAN standardized products for cables, plugs, and couplers:
CAT5, CAT5e, CAT6.)
• Communication cables must be installed by separating from the power cable.
• Use the RS-485 communication by selecting one from S+ or S- of the terminal block
and S+ or S- of the RJ45 plug.
