LSIS G100 User Manual

Basic Configuration

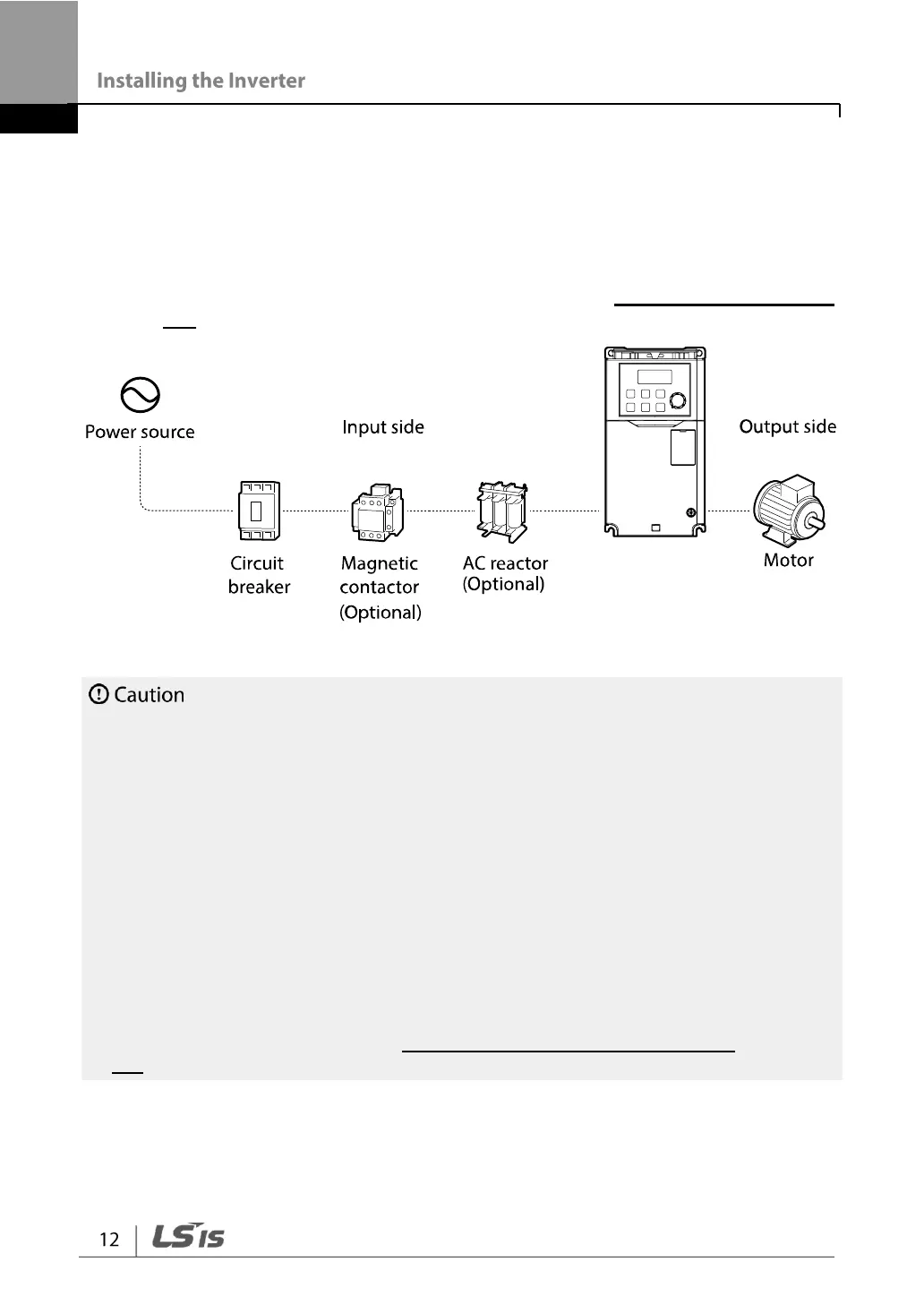

The diagram below shows the basic system configuration. Use the diagram for
reference when configuring the system by connecting the product with peripheral
devices. Ensure that the product has a suitable rating for the configuration and that all
the required peripherals and optional devices (brake unit, reactors, noise filters, etc.)
are available. For more details on peripheral devices, see to 11.4 Peripheral Devices
on page 311.
• Note that the illustration on this user manual may represent the product with the cover
open or the circuit breaker removed for explanation. When operating the inverter, make
sure to follow the instructions of user manual after fully installing the necessary parts,
such as the cover and circuit breaker.
• Do not start or stop the inverter with a magnetic contactor. This may cause damage to
the inverter.
• If the inverter is damaged and loses control, the machine may cause a dangerous
situation. Install an additional safety device such as an emergency brake to prevent
these situations.
• High levels of current draw during power-on can affect the system. Ensure that
correctly rated circuit breakers are installed to operate safely during power-on
situations.
• Reactors can be installed to improve the power factor. Note that reactors may be
installed within 30 ft (9.14 m) from the power source if the input power exceeds 10
times of inverter capacity. Refer to 11.5 Fuse and Reactor Specifications on page
312 and carefully select a reactor that meets the requirements.
